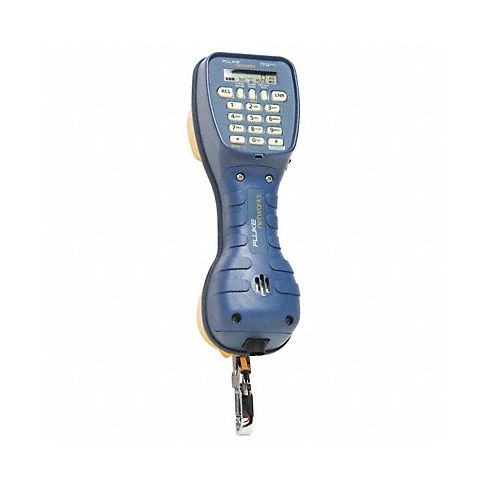

Test Set TS52 Pro w/ ABN MPN:52801009

Fluke Networks® TS® 52 PRO Test Set features radiant liquid crystal display (LCD) user interface. It allows you to see what cannot be heard in any outside plant environment. The back lit LCD and phosphorescent (glow-in-the-dark) keypad brings light to even the darkest of work environments. DataSafe™ Pro data protection technology features high-impedance monitoring, lockout, and override. DSL/POTS filtering technology allows technicians to clip on a live DSL line to test POTS service without downing or disrupting data service. RainSafe set is designed for use in rain condition. 2-way hands-free speakerphone for true hands-free conversation.

Test functions include:
• Data indication—warns when data is present.
• Voltage indication—troubleshooting feature to identify potential line problems
• Current (mA) indication—verifies sufficient line current
• Caller-ID—verifies service is functional
• DTMF Digit Grabbing—isolate faulty customer premise equipment

Technical Specifications

• Item Test Set
• Connector Type ABN/PP
• For Use With Telephone Lines
• Features Data Lockout Protection/Override, DSL/POTS Filtering, Last Number Redial, Mute, One-Way Amplified Speaker, Polarity Indication, Speed Dial Memory and Backlit Keypad, Two-Way Speakerphone
• Application Butt in Test Set, Caller ID, Data Safe, DC Meter, Digit Grabbing, Miliamp Detection, Telephone Test Set
• Display LCD
• Data Safe Monitor Yes
• Dialing Method Pulse, Tone
• Line Polarity Indicator Yes
• Waterproof Yes
• Includes 9V Replaceable Battery

Manufacturer Details

• Manufacturer: Fluke
• Condensed Mfg Number: 52801009
• MPN: 52801009

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: TW
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9030400000
• GDS Category Name: Telephone Line Test Sets
• GDS Family Name: Data and Communication
• GDS Segment Name: Electrical
• UNSPSC: 43222814
• UNSPSC Class ID: 28
• UNSPSC Commodity Name: Telephony equipment
• UNSPSC Commodity ID: 14
• UNSPSC Commodity Name: Telecommunication equipment installation or modification kits
• UNSPSC Family ID: 22
• UNSPSC Family Name: Data Voice or Multimedia Network Equipment or Platforms and Accessories
• UNSPSC Segment ID: 43
• UNSPSC Segment Name: Information Technology Broadcasting and Telecommunications

Shipping Details

• Not For Sale In: HI AK PR
