Pressure Calibrator 36 psi to 5000 psi MPN:FLK-721EX-3650
Free Shipping
In Stock

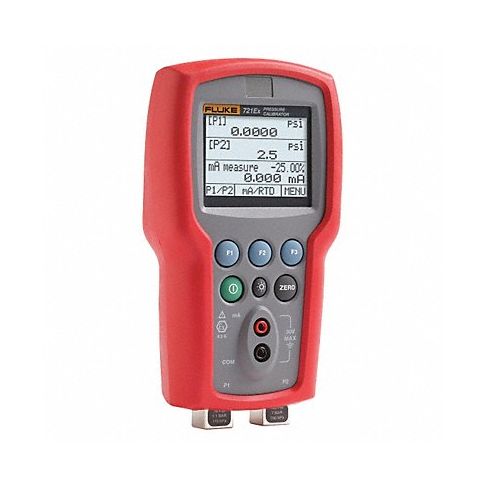

The Pressure Calibrator from Fluke is an ideal tool for measuring and calibrating pressure in a wide range of industrial and manufacturing settings. With an external pressure source, this handheld device boasts multiple measurement functions, including pressure, temperature, and mA DC. It features a versatile pressure measurement range, going from -14 to 36 psi and 0 to 5000 psi, making it suitable for both low and high-pressure applications. The loop supply voltage is AC 12V with battery backup, ensuring continuous operation without interruptions. Users can take advantage of this device's accuracy and precision when testing and calibrating pressure gauges, transducers, transmitters, and other equipment in their industries. Its rugged design makes it durable and reliable for everyday use in various environments.
Top product features:
- External pressure source: allows for accurate pressure measurements in various applications.
- Multiple measurement functions: includes pressure, temperature, and mA DC measurement for versatility.
- Wide internal pressure range (-14 to 5000 psi): suited for high and low-pressure environments.
Top product applications:
- Calibration of pressure gauges and sensors in industrial settings.
- Quality control and testing of pressure systems and components in manufacturing industries.
- Pressure adjustments and repairs in HVAC (heating, ventilation, and air conditioning) systems.
Technical Specifications
- Item Handheld Pressure Calibrator
- Pressure Source External
- Measurement Functions Pressure, Temperature, mA DC
- Internal Pressure Measurement Range -14 to 36 psi and 0 to 5000 psi
- Loop Supply Voltage No
- Current Measurement Range 0 to 24mA DC
- RTD Type PT 100, PT 385
- RTD Temperature Range -40 Degrees to 150 Degrees C
- Displayed Pressure Units bar, cm wc, ft wc, in Hg, in wc, kg/sq cm, kPa, mbar, mm Hg, mm wc, mPa, psi
- Display Multiline LCD
- Safety Rating IECEx and Atex Ex ia IIB T3 Gb
- Calibration Certificate Yes
- Powered By (4) AA Alkaline Batteries
- Includes Fluke 721Ex Calibrator, Test Leads, Aligator Clips, Magnetic Hanger, Manuals On CD, Calibration Certification, Quick Start Guide, Soft Case
- Manufacturers Warranty Length 3 yr
Manufacturer Details
- Manufacturer: Fluke
- Condensed Mfg Number: FLK721EX3650
- MPN: FLK-721EX-3650
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Handheld Pressure Calibrators
- GDS Family Name: Process Monitoring
- GDS Segment Name: Test Instruments
- UNSPSC: 41113630
- UNSPSC Class ID: 36
- UNSPSC Commodity Name: Electrical measuring and testing equipment
- UNSPSC Commodity ID: 30
- UNSPSC Commodity Name: Multimeters
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
