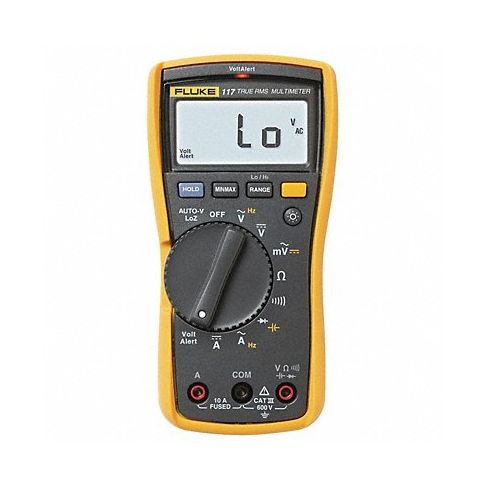

Electricians Digital Multimeter 600V MPN:FLUKE-117/CWG

The Fluke 117 electrician's true RMS digital multimeter with integrated noncontact voltage detection helps you work quickly in demanding settings such as commercial buildings, hospitals, and schools. AutoVolt automatic AC/DC voltage selection helps eliminate guesswork, and LoZ low-impedance input reduces chance of false readings due to ghost voltage.
The instrument measures AC/DC voltage and current, resistance, capacitance, and frequency, and provides Min/Max/Avg readings to record signal fluctuations. The compact, dependable DMM is easily operated one-handed. Its large display with white LED backlight helps you work effectively in poorly lit areas.

Technical Specifications

• Item Digital Multimeter
• Multimeter Style Compact - Basic Features
• Instrument Counts 6000
• Basic DC Accuracy +/-0.50% of Reading +2 Digits
• Instrument Safety Rating CAT III 600V
• Max. AC Volts 600
• Max. DC Volts 600
• Max. AC Amps 10
• Max. DC Amps 10
• Audible Continuity Yes
• Max. Ohms 40 megohm
• Instrument Frequency Counter Range 0.01 Hz to 50 kHz
• Capacitance Range 1 nF to 9999 uF
• Temp. Range 14 Degrees to 122 Degrees F
• Duty Cycle No
• Display Backlit LCD
• Bar Graph Yes
• Min./Max. Memory Yes
• Data Logging No
• Battery Type 9V Alkaline
• AC Response TRMS
• Data Hold Yes
• Auto Ranging Yes
• Special Features Electricians, Non Contact Voltage Detection
• Diode Test Yes
• Auto Power Off Yes
• Calibration Certificate Included Yes
• NIST Certification By Techni-Tool
• Series FLUKE (R) Fluke-117
• Includes Battery, Instructions, Test Leads
• Manufacturers Warranty Length 3 yr

Manufacturer Details

• Manufacturer: Fluke
• Condensed Mfg Number: FLUKE117CWG
• MPN: FLUKE-117/CWG

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9030310000
• GDS Category Name: Digital Multimeters
• GDS Family Name: Electrical Power Testing
• GDS Segment Name: Test Instruments
• UNSPSC: 41113630
• UNSPSC Class ID: 36
• UNSPSC Commodity Name: Electrical measuring and testing equipment
• UNSPSC Commodity ID: 30
• UNSPSC Commodity Name: Multimeters
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
