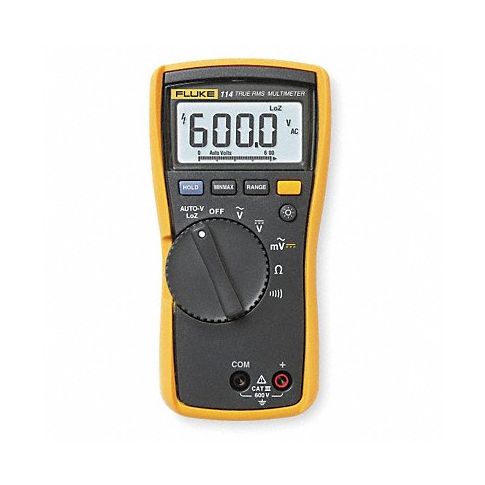

Digital Multimeter 600V 40 MOhms MPN:FLUKE-114-NIST-D

This easy-to-use meter has the features needed to diagnose and repair most electrical problems. The Fluke 114 true RMS digital multimeter is designed for one-handed operation and dependable electrical go/no go troubleshooting. It automatically switches to measure AC or DC voltage, and offers reduced chance of false readings due to ghost voltage.
The DMM displays true RMS voltage and current with 6000-count resolution, and tests frequency, continuity and resistance. The large display with white LED backlight helps you work effectively in dim, poorly lit spaces.

Technical Specifications

• Item Digital Multimeter
• Multimeter Style Compact - Basic Features
• Instrument Counts 6000
• Basic DC Accuracy +/-0.50% of Reading +2 Digits
• Instrument Safety Rating CAT III 600V
• Max. AC Volts 600
• Max. DC Volts 600
• Max. AC Amps 10
• Max. DC Amps 10
• Audible Continuity Yes
• Max. Ohms 40 megohm
• Temp. Range 14 Degrees to 122 Degrees F
• Display Backlit LCD
• Bar Graph Yes
• Min./Max. Memory Yes
• Battery Type 9V Alkaline
• AC Response TRMS
• Data Hold Yes
• Auto Ranging Yes
• Special Features Low Impedance Mode Prevents False Readings Due to Ghost Voltage
• Diode Test Yes
• Auto Power Off Yes
• Calibration Certificate Included Yes with Data
• NIST Certification By Fluke
• Series FLUKE (R) Fluke-114
• Includes Battery, Instructions, Test Leads
• Manufacturers Warranty Length 3 yr
