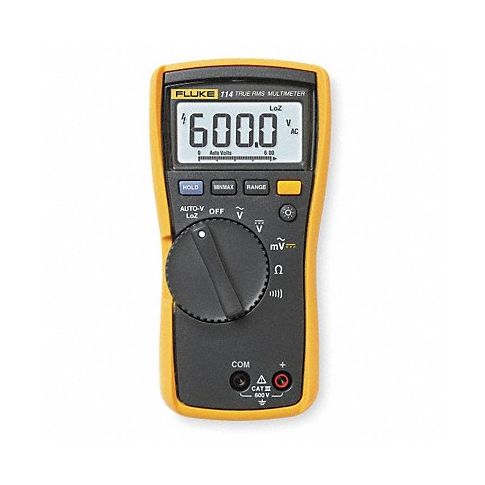

Digital Multimeter 600V 40 MOhms MPN:FLUKE-114/CWG

This easy-to-use meter has the features needed to diagnose and repair most electrical problems. The Fluke 114 true RMS digital multimeter is designed for one-handed operation and dependable electrical go/no go troubleshooting. It automatically switches to measure AC or DC voltage, and offers reduced chance of false readings due to ghost voltage.
The DMM displays true RMS voltage and current with 6000-count resolution, and tests frequency, continuity and resistance. The large display with white LED backlight helps you work effectively in dim, poorly lit spaces.

Technical Specifications

• Item Digital Multimeter
• Multimeter Style Compact - Basic Features
• Instrument Counts 6000
• Basic DC Accuracy +/-0.50% of Reading +2 Digits
• Instrument Safety Rating CAT III 600V
• Max. AC Volts 600
• Max. DC Volts 600
• Max. AC Amps 10
• Max. DC Amps 10
• Audible Continuity Yes
• Max. Ohms 40 megohm
• Instrument Frequency Counter Range 5 Hz to 50 kHz
• Temp. Range 14 Degrees to 122 Degrees F
• Duty Cycle No
• Display Backlit LCD
• Bar Graph Yes
• Min./Max. Memory Yes
• Data Logging No
• Battery Type 9V Alkaline
• AC Response TRMS
• Data Hold Yes
• Auto Ranging Yes
• Special Features Low Impedance Mode Prevents False Readings Due to Ghost Voltage
• Diode Test Yes
• Auto Power Off Yes
• Calibration Certificate Included Yes
• NIST Certification By Techni-Tool
• Standards CSA, UL
• Series FLUKE (R) Fluke-114
• Includes Battery, Instructions, Test Leads
• Manufacturers Warranty Length 3 yr

Manufacturer Details

• Manufacturer: Fluke
• Condensed Mfg Number: FLUKE114CWG
• MPN: FLUKE-114/CWG

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9030310000
• GDS Category Name: Digital Multimeters
• GDS Family Name: Electrical Power Testing
• GDS Segment Name: Test Instruments
• UNSPSC: 41113630
• UNSPSC Class ID: 36
• UNSPSC Commodity Name: Electrical measuring and testing equipment
• UNSPSC Commodity ID: 30
• UNSPSC Commodity Name: Multimeters
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
