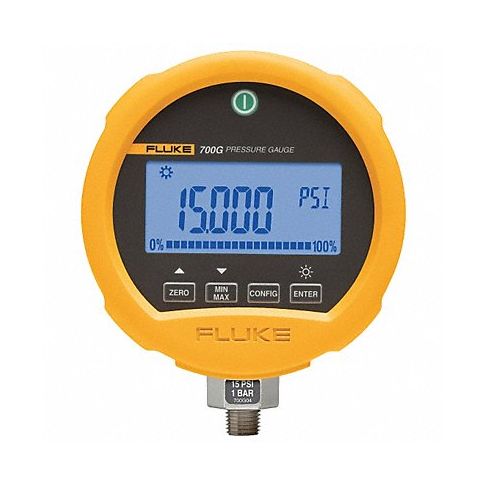

K4554 Pressure Gauge -14 to 1000 MPN:FLUKE-700RG08
Introducing the K4554 Pressure Gauge -14 to 1000 from Fluke! This versatile gauge is perfect for professionals who need a reliable tool to measure pressure in a variety of industries such as automotive, aerospace, and medical. With its large backlit screen that displays 3 parameters at once, you'll get the ultimate in measurement flexibility. Combine it with Fluke's PTP-1 or HTP-2 pumps (both sold separately) for a complete pressure testing solution that can handle up to 600 psi (40 bar) and 10,000 psi (690 bar), respectively. Log up to 8,493 pressure measurements to memory with the help of 700G/TRACK software (sold separately). Plus, its durable metal case ensures long-lasting use. So don't settle for mediocre results - invest in the K4554 Pressure Gauge -14 to 1000 and experience the precision and accuracy you need to get the job done right.
Top product features:
- Large backlit screen for maximum measurement flexibility
- Durable metal case for long-lasting use
- Compatible with Fluke PTP-1 and HTP-2 pumps for a complete pressure testing solution
Top product applications:
- Automotive maintenance and repairs
- Aerospace manufacturing and testing
- Medical equipment calibration and maintenance
Technical Specifications
- Digital Pressure and Vacuum Gauge Type Digital Compound Gauge
- Item Digital Compound Gauge
- Gauge Nominal Dial Size 3 3/4 in
- Basic Gauge Case Material Metal
- Basic Gauge Wetted Parts Stainless Steel
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units psi
- Gauge Primary Range Values -14 to 0 to 1000
- Digital Gauge Accuracy +/-0.04% of Reading
- Display Multiline LCD
- Socket Material Stainless Steel
- Case Material Cast ZNAL
- Case Color Yellow
- Digital Gauge Display Units bar, psi
- Powered By (3) AA Batteries
- Agency Compliance CSA: Class 1, Div2, Groups A-D rating, ATEX: rating II 3 G Ex nA IIB T6
- Gauge Operating Temp. Range -14 Degrees to 131 Degrees F
- Series Fluke-700G
- Calibration Certificate NIST Traceable
- Peak Hold No
- Includes Calibration Certificate, Manual On CD, NPT/Metric Adapter, Protective Cover
- Manufacturers Warranty Length 3 yr
Manufacturer Details
- Manufacturer: Fluke
- Condensed Mfg Number: FLUKE700RG08
- MPN: FLUKE-700RG08
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Industrial Process and Test Digital Pressure Gau
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
