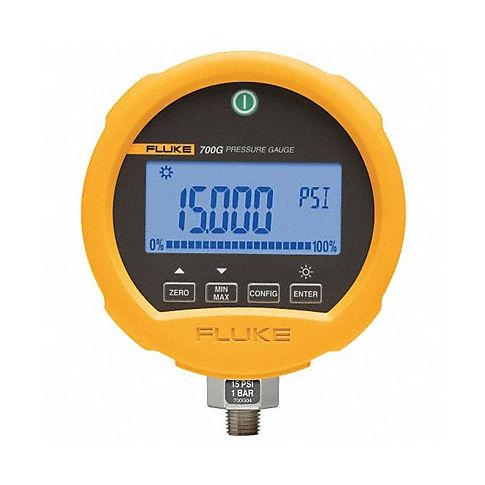

K4554 Pressure Gauge 0 to 15 MPN:FLUKE-700GA4
K4554 Pressure Gauge 0 to 15
Introducing Fluke's K4554 Pressure Gauge - the perfect tool for measuring pressure in a variety of applications, including HVAC systems, manufacturing, and process plants. This rugged and user-friendly gauge can be combined with the 700PTPK or 700HTPK test pumps for complete pressure testing solutions from 0 to 15 PSI. The large backlit display shows 3 parameters simultaneously, while the gauge's ability to log up to 8,493 pressure measurements to memory makes it a versatile and reliable tool. Its metal construction ensures durability and longevity in harsh environments. Use Fluke's K4554 Pressure Gauge for your next pressure testing project - order yours today!
Top product features:
- PTP-1 pneumatic pump compatibility for up to 600 psi (40 bar) pressure testing solutions
- HTP-2 hydraulic pump compatibility for up to 10,000 psi (690 bar) pressure testing solutions
- Large backlit screen displays 3 parameters simultaneously.
Top product applications:
- Testing and monitoring pressure levels in industrial equipment such as air compressors, hydraulic systems, and pumps
- Measuring gas pressure in laboratories or chemical plants
- Checking the pressure of compressed gas cylinders used for medical purposes.
This rugged and easy-to-use gauge can be combined with the Fluke 700PTPK or 700HTPK for a complete pressure testing solution for up to 600 psi (40 bar) with the PTP-1 pneumatic pump and up to 10,000 psi (690 bar) with the HTP-2 hydraulic pump (both sold separately). Get the ultimate in measurement flexibility with the large backlit screen, which displays 3 parameters at once. Gauge can also log up to 8,493 pressure measurements to memory (requires 700G/TRACK software, sold separately).
Technical Specifications
- Digital Pressure and Vacuum Gauge Type Digital Pressure Gauge
- Item Digital Pressure Gauge
- Gauge Nominal Dial Size 3 3/4 in
- Basic Gauge Case Material Metal
- Basic Gauge Wetted Parts Stainless Steel
- Gauge Connection Type MNPT
- Gauge Connection Size 1/4 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 15
- Digital Gauge Accuracy +/-0.05% of Reading
- Display Multiline LCD
- Socket Material Stainless Steel
- Case Material Cast ZNAL
- Case Color Yellow
- Digital Gauge Display Units bar, psia
- Powered By (3) AA Batteries
- Agency Compliance CSA: Class 1, Div2, Groups A-D rating, ATEX: rating II 3 G Ex nA IIB T6
- Gauge Operating Temp. Range -14 Degrees to 131 Degrees F
- Series Fluke-700G
- Calibration Certificate NIST Traceable
- Peak Hold No
- Includes Calibration Certificate, Manual On CD, NPT/Metric Adapter, Protective Cover
- Manufacturers Warranty Length 3 yr
Manufacturer Details
- Manufacturer: Fluke
- Condensed Mfg Number: FLUKE700GA4
- MPN: FLUKE-700GA4
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Industrial Process and Test Digital Pressure Gau
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 11:48am UTC
Category: Pressure and Vacuum Measuring
