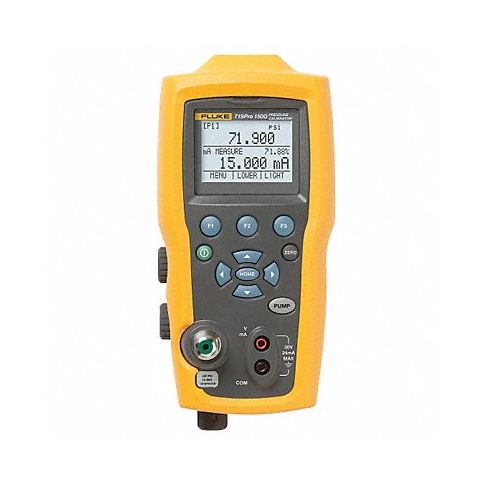

Pressure Calibrator -12 to 300 psi MPN:FLUKE-719PRO 300G
Introducing the Fluke 719PRO 300G Handheld Pressure Calibrator - the ultimate tool for precise pressure calibration! With a pressure measurement range of -12 to 300 psi, this robust calibrator offers both internally generated and external test pressures for optimal accuracy. It boasts five measurement functions, including pressure, mA DC, V DC, and temperature, allowing you to tackle various calibration tasks with ease. The 719PRO 300G's internal pump delivers reliable pressure source options that ensure a fast response time. Its versatile applications include testing and calibrating instruments across diverse industries like manufacturing, automotive, research labs, and more. Upgrade your calibration capabilities with the Fluke 719PRO 300G today!
Top product features:
- Precise Pressure Measurement: The Fluke 719PRO 300G offers accurate pressure measurements within the range of -12 to 300 psi, making it suitable for various applications and industries.
- Fast Response Time: With its built-in electric pump, the Fluke 719PRO 300G delivers quick pressure source options, speeding up calibration tasks.
- Versatile Measurement Functions: The device offers multiple measurement functions such as Pressure, mA DC, V DC, and Temperature, allowing users to work on different types of instruments with a single tool.
Top product applications:
- Pressure calibration in manufacturing settings.
- Calibrating pressure gauges and sensors in research labs.
- Maintaining and testing pressure equipment in industrial plants.
Technical Specifications
- Item Handheld Pressure Calibrator
- Pressure Source Internal Electric Pump
- Measurement Functions Pressure, mA DC, V DC, Temperature
- Internal Pressure Measurement Range -12 to 300 psi
- Internally Generated Pressure Range -12 to 300 psi
- Pressure Range with External Modules -15 psi to 10,000 psi
- Internal Pressure Range Accuracy +/-0.035% of Full Scale
- Loop Supply Voltage 24V DC
- Current Measurement Range 0 to 24mA DC
- Source Current 4 to 20mA DC
- Voltage Measurement Range 0 to 30V DC
- RTD Type PT 100, PT 385
- RTD Temperature Range -40 Degrees to 150 Degrees C
- Displayed Pressure Units bar, cm wc, ft wc, in Hg, in wc, kg/sq cm, kPa, mbar, mm Hg, psi
- Display Multiline LCD
- Standards CE, CSA, TUV, KCC, RCM
- Calibration Certificate NIST
- Powered By (8) Alkaline AA Batteries
- Includes Test Leads with Alligator Clips, Printed user's manual and user's manual on CD-ROM in 14 languages, Fluid trap, Carrying case, 1/4 inch NPT to 1/4 inch ISO adapter, Accessory hose kit with (2) 1/8 inch quick fit adapters and 1 meter of hose, Traceable Certificate of Calibration
- Manufacturers Warranty Length 3 yr
- Pressure Modules 700P Series (29 Ranges)
Manufacturer Details
- Manufacturer: Fluke
- Condensed Mfg Number: FLUKE719PRO300G
- MPN: FLUKE-719PRO 300G
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9030310000
- GDS Category Name: Handheld Pressure Calibrators
- GDS Family Name: Process Monitoring
- GDS Segment Name: Test Instruments
- UNSPSC: 81141504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Quality control
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Equipment test calibration or repair
- UNSPSC Family ID: 14
- UNSPSC Family Name: Manufacturing technologies
- UNSPSC Segment ID: 81
- UNSPSC Segment Name: Engineering and Research and Technology Based Services
Shipping Details
- Not For Sale In: HI AK PR
