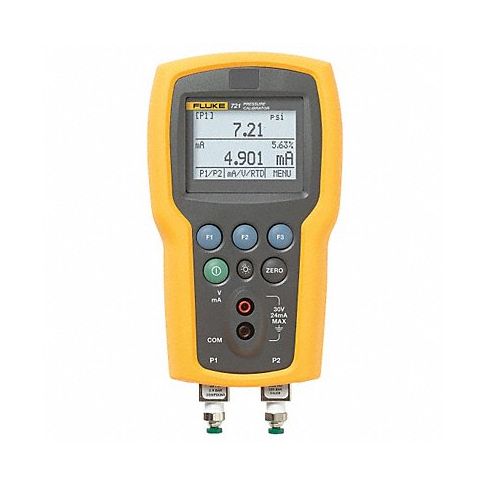

Pressure Calibrator 0 to 5000 psi MPN:FLUKE-721-1650
Looking for an accurate and reliable pressure calibrator that can handle a wide range of applications? Look no further than the Fluke 721 Pressure Calibrator! With its ability to measure pressure, mA DC, V DC, and temperature, this calibrator is perfect for professionals in HVAC/R, maintenance, field service, and more. It has a user-friendly interface and large display screen, making it easy to read and operate even in low light conditions. Additionally, the Fluke 721 can measure pressures ranging from -14 psi to 10,000 psi with its external modules, making it ideal for even the most demanding applications. With its compact and rugged design, the Fluke 721 is the perfect tool for any job site, ensuring accurate and reliable measurements every time.
Top product features:
- Measures pressure from -14 psi to 10,000 psi
- External modules increase measurement range
- Rugged and compact design for easy transport
Top product applications:
- HVAC/R technicians measuring system pressures
- Maintenance personnel verifying system integrity
- Field service technicians calibrating gauges and sensors
Technical Specifications
- Item Handheld Pressure Calibrator
- Pressure Source External
- Measurement Functions Pressure, mA DC, V DC, Temperature
- Internal Pressure Measurement Range -14 to 16 psi and 0 to 5000 psi
- Pressure Range with External Modules -15 psi to 10,000 psi
- Internal Pressure Range Accuracy +/-0.025% Full Scale
- Loop Supply Voltage 24V DC
- Current Measurement Range 0 to 24mA DC
- Source Current 4 to 24mA DC
- Voltage Measurement Range 0 to 30V DC
- RTD Type PT 100, PT 385
- RTD Temperature Range -40 Degrees to 150 Degrees C
- Displayed Pressure Units bar, cm wc, ft wc, in Hg, in wc, kg/sq cm, kPa, mbar, mm Hg, psi
- Display Multiline LCD
- Standards CE, CSA, TUV, KCC, RCM
- Calibration Certificate NIST
- Powered By (4) AA Alkaline Batteries
- Includes Product Manuals CD, Getting Started Manual, Quick Reference Guide, Test Leads, Carry Case, Batteries, Traceable Calibration Certificate
- Manufacturers Warranty Length 3 yr
- Pressure Modules 700P Series (29 Ranges)
Manufacturer Details
- Manufacturer: Fluke
- Condensed Mfg Number: FLUKE7211650
- MPN: FLUKE-721-1650
