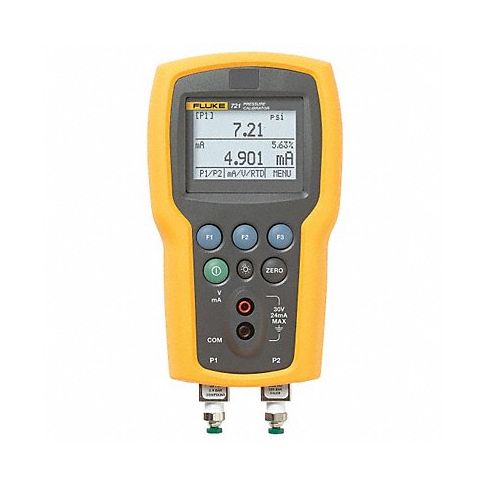

Pressure Calibrator -12 to 300 psi MPN:FLUKE-721-1603
Introducing Fluke's highly accurate Pressure Calibrator -12 to 300 psi, a compact and rugged tool designed for calibrating pressure gauges and transducers in field service and maintenance environments. This easy-to-use instrument offers a wide range of measurement functions, including pressure, mA DC, V DC, and temperature. It features both an external module for measuring pressures up to 10,000 psi and internal ranges to suit common gauge and transducer outputs. Its large, backlit display makes it easy to read results in any lighting conditions, while its compact design allows for effortless transportation between jobs. The Pressure Calibrator's durable construction ensures reliable operation in even the most demanding conditions, making it an indispensable tool for professionals in industries such as aerospace, automotive, petrochemical, and HVAC. Invest in a Fluke Pressure Calibrator today and experience the ultimate combination of accuracy and versatility for your pressure calibration needs.
Top product features:
- Handheld pressure calibrator
- Measurement functions: Pressure, mA DC, V DC, Temperature
- Internal pressure measurement range: -14 to 16 psi and -12 to 300 psi
Top product applications:
- Calibration of pressure gauges and transducers in field service environments
- Quality control checks on HVAC systems
- Preventive maintenance in aerospace, automotive or petrochemical industries
Technical Specifications
- Item Handheld Pressure Calibrator
- Pressure Source External
- Measurement Functions Pressure, mA DC, V DC, Temperature
- Internal Pressure Measurement Range -14 to 16 psi and -12 to 300 psi
- Pressure Range with External Modules -15 psi to 10,000 psi
- Internal Pressure Range Accuracy +/-0.025% Full Scale
- Loop Supply Voltage 24V DC
- Current Measurement Range 0 to 24mA DC
- Source Current 4 to 24mA DC
- Voltage Measurement Range 0 to 30V DC
- RTD Type PT 100, PT 385
- RTD Temperature Range -40 Degrees to 150 Degrees C
- Displayed Pressure Units bar, cm wc, ft wc, in Hg, in wc, kg/sq cm, kPa, mbar, mm Hg, psi
- Display Multiline LCD
- Standards CE, CSA, TUV, KCC, RCM
- Calibration Certificate NIST
- Powered By (4) AA Alkaline Batteries
- Includes Product Manuals CD, Getting Started Manual, Quick Reference Guide, Test Leads, Carry Case, Batteries, Traceable Calibration Certificate
- Manufacturers Warranty Length 3 yr
- Pressure Modules 700P Series (29 Ranges)
Manufacturer Details
- Manufacturer: Fluke
- Condensed Mfg Number: FLUKE7211603
- MPN: FLUKE-721-1603
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Handheld Pressure Calibrators
- GDS Family Name: Process Monitoring
- GDS Segment Name: Test Instruments
- UNSPSC: 81141504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Quality control
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Equipment test calibration or repair
- UNSPSC Family ID: 14
- UNSPSC Family Name: Manufacturing technologies
- UNSPSC Segment ID: 81
- UNSPSC Segment Name: Engineering and Research and Technology Based Services
Shipping Details
- Not For Sale In: HI AK PR
