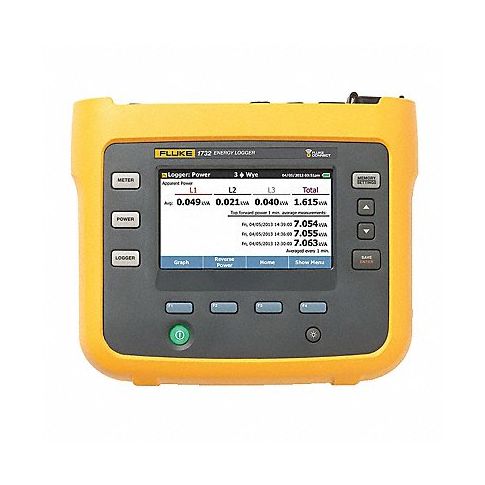

Power Quality Analyzer 1500A Max MPN:FLUKE-1732/EUS
The Fluke Power Quality Analyzer 1500A Max is an advanced tool designed for professionals in the field of electrical engineering. This versatile analyzer helps identify potential power quality issues, enabling users to optimize energy usage and reduce costs. With a maximum current capability of 1.56GW, it's suitable for use in a wide range of applications, including power distribution systems, renewable energy installations, and industrial settings. The analyzer is easy to operate and can detect problems such as harmonics, voltage sags, and flicker. Users can quickly download data using Energy Analyze software and generate custom reports, making it simple to identify trends and analyze data. With Fluke Connect module support (optional), users can access real-time monitoring and notifications from their smartphone or tablet. Invest in the Fluke Power Quality Analyzer 1500A Max and ensure optimal power quality for your facility today!
Top product features:
- Real-time monitoring and notification through Fluke Connect module (optional)
- Suitable for use in power distribution systems, renewable energy installations, and industrial settings
- Identifies potential power quality issues to optimize energy usage and reduce costs
Top product applications:
- Power distribution systems monitoring and optimization in industries
- Energy waste detection and management in commercial buildings and facilities
- Renewable energy system testing and maintenance in solar farms and wind turbines
Technical Specifications
- Item Power Quality Analyzer
- Phase 3
- Max. Watts 1.56GW
- Kit Current Capability 3 to 3000A
- Max. VA 1000TVA
- Max. AC Amps 1,000 A
- Max. DC Amps 1,000 A
- Current Accuracy +/-0.1%
- Current Channels 5
- Max. AC Voltage 1,000
- Max. DC Voltage 1000
- Voltage Accuracy +/-10%
- Voltage Channels 4
- Calibration Frequency 42.5 to 69 Hz
- Power Factor -1 to 1
- AC Response 7 kHz
- Display Color LCD Touch Screen
- Display Resolution 480 x 272
- Harmonic Capture Range 50th
- Min. Transient Duration 200 nS
- Sampling Rate 1 MHz, 256 s/c
- Crest Factor Less Than 3
- Safety Rating CAT III 1000V, CAT IV 600V, IEC 61010-1, IEC 61010-2-031
- Data Logging Yes
- Peak Capture Yes
- Storage 2 GB
- Calibration Certificate NIST
- Includes Energy Logger with Fluke Connect
- Manufacturers Warranty Length 2 yr
Manufacturer Details
- Manufacturer: Fluke
- Condensed Mfg Number: FLUKE1732EUS
- MPN: FLUKE-1732/EUS
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: RO
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9030390100
- GDS Category Name: Power Quality Analyzers Loggers and Recorders
- GDS Family Name: Electrical Power Testing
- GDS Segment Name: Test Instruments
- UNSPSC: 41113708
- UNSPSC Class ID: 37
- UNSPSC Commodity Name: Electronic and communication measuring and testing instruments
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Power meters
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
