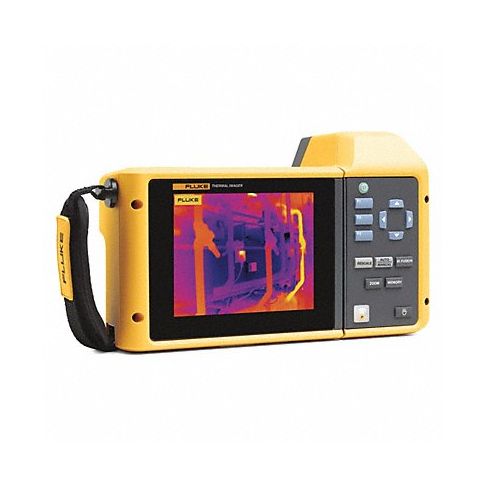

Infrared Camera Wireless Display 5.7 MPN:FLK-TIX580
Infrared Camera Wireless Display 5.7
The Fluke TiX580 Infrared Camera Wireless Display 5.7 is an advanced thermal imaging tool designed for professional electricians, HVAC technicians, building inspectors, and more. With its high-resolution 640 x 480 display, rotating screen, ergonomic design, and large 5.7-inch touchscreen, this camera delivers unparalleled performance in challenging environments. Capture detailed images of hard-to-reach areas with ease, thanks to the rotating screen feature, and get a clear picture even under glare with adjustable settings. The Fluke TiX580 also offers an extended temperature range of -4F to 1472F (-20C to 800C), making it suitable for various applications. Efficiently troubleshoot electrical and mechanical systems, detect energy loss in buildings, conduct industrial inspections, and more with the Fluke TiX580 Infrared Camera Wireless Display 5.7.
Top product features:
- Rotating screen for capturing images in hard-to-reach areas
- Extended temperature range for versatile applications
- Large LCD touchscreen for premium in-field viewing experience
Top product applications:
- Building inspections for detecting energy loss and potential structural problems
- Electrical systems troubleshooting to identify overheating or faulty connections
- HVAC maintenance for diagnosing blockages or airflow issues
The FLUKE TiX580 infrared camera is a rugged and superbly engineered 640 x 480 thermal imaging camera. Users can now perform thermal imaging inspections with more confidence and faster results. The 240 rotating screen makes it easy to capture images when equipment is in awkward or hard-to-reach areas. The ergonomic design and neck strap make long inspection days a lot easier and more comfortable. The rotating screen allows user to make adjustments to minimize glare, and the large 5.7" LCD touchscreen delivers a premium in-field viewing experience.
Technical Specifications
- Item - Infrared Camera Infrared Camera
- Temp. Range (F) - Infrared -4 Degrees to 1472 Degrees
- Temp. Range (C) - Infrared -20 Degrees to 800 Degrees
- Field of View - IR Camera 34.0 Degrees Horizontal x 24.0 Degrees Vertical
- Focus Distance - Infrared Minimum of 0.15 m
- Focus Method Auto
- Thermal Sensitivity - IR Camera 50
- Detector Resolution - Infrared 640 x 480 Pixels
- Display - IR Camera 5.7 in. Color LCD
- Display Resolution - IR Camera 640 x 480 Pixels
- Data Logging - Instrument Yes
- Wireless Yes
- NIST Certified No
- Spectral Response - Infrared 7.5 to 14.0um
- Frame Rate - IR Camera 60 Hz
- Picture In Picture Yes
- Laser Sighting Yes
- Alarm Yes
- Visual Light Resolution 5.0 MP
- Image Notation Text Annotation and Voice Annotation
- Removable Memory Card Micro SD
- File Formats BMP, IS2, JPEG, JPG
- Thermal and Visible Light Blending No
- Articulating Lens Yes
- Special Features 240 Degrees Rotating Screen, Ergonomic Design, Extended Warranties Are Available, Fluke Connect Smartview Desktop Software, IR Fusion(R) Technology, IR-Photonotes(TM), Lasersharp(R) Auto Focus, MATLAB and LabVIEW Compatibility, Multisharp(TM) Focus Delivers Automatically Focused Images Throughout Your Field of View
- Multiple Lens Option Yes
- Drop Tested 1 m
- Emissivity Adjustable 0.01 to 1.00
- Temp. Accuracy (F) - Infrared +/-2 Degrees or +/-2%
- Temp. Accuracy (C) - Infrared +/-2.0 Degrees
- Series - IR Camera Fluke TIX Series
- Safety Rating IEC 61010-1: Overvoltage Category II, Pollution Degree 2
- Includes AC Power Supply, Battery Pack Charger, Universal AC Adapter, (2) Lithium-Ion Smart Battery Packs, USB Cable, HDMI Video Cable, Hard Carrying Case, Neck and Hand Strap, Bluetooth Headset, Fluke Connect SmartView Desktop Software Download
- Manufacturers Warranty Length 2 yr
- Item Infrared Camera
Manufacturer Details
- Manufacturer: Fluke
- Condensed Mfg Number: FLKTIX580
- MPN: FLK-TIX580
Label Details
- Hazardous Material: Y
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9027504020
- GDS Category Name: Infrared Cameras
- GDS Family Name: Temperature and Humidity Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41115321
- UNSPSC Class ID: 53
- UNSPSC Commodity Name: Light and wave generating and measuring equipment
- UNSPSC Commodity ID: 21
- UNSPSC Commodity Name: Infrared imagers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
