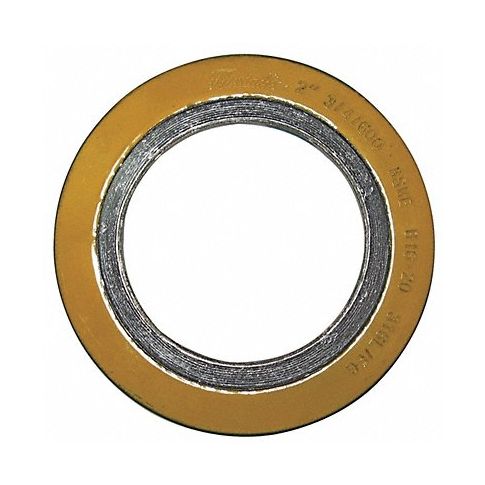

Spiral Wound Metal Gasket 2-1/2In 316SS MPN:CG
Spiral Wound Metal Gasket 2-1/2In 316SS
This spiral wound metal gasket is suitable for various industrial applications such as plumbing systems, heat exchangers, valves, pumps or tanks requiring reliable sealing solutions against high pressure & temperature hence maintaining a tight connection between pipe surfaces preventing fluid leakage during installation, repair and replacement tasks saving time and resources on maintenance procedures where it can be used across industries like food processing plants, petrochemical refineries, power generation stations or pharmaceutical facilities guaranteeing quality control & safety standards for years to come.
Metal-Reinforced Spiral-Wound Ring GasketsMeet ANSI B16.20.Flexitallic CG • Temp. range: -150° to 842°F316 stainless steel windings with flexible graphite filler. Feature an external ring that centers the gasket on the flange face. Provides additional radial strength to help prevent gasket blowout and acts as a compression stop. General purpose gasket suitable for use with raised face and flat face flanges.
Technical Specifications
- Item Spiral Wound Metal Gasket
- Type ANSI class 300/400/600 lb flange
- Pipe Size 2 1/2 in
- Outside Dia. 5 1/8 in
- Inside Dia. 3 1/4 in
- Thickness 11/64 in
- Material of Construction 316SS and Flexible Graphite
- Temp. Range (F) -320 to 842
- Color Gray Stripe, Green Band
- Metal Detectable Yes
- Standards ASME B16.20, ASME/ANSI Pressure Class-300-400-600 LB
Manufacturer Details
- Manufacturer: Flexitallic
- Condensed Mfg Number: CG
- MPN: CG
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8484100000
- GDS Category Name: Sheet and Ring Gaskets
- GDS Family Name: Gaskets
- GDS Segment Name: Plumbing
- UNSPSC: 31181503
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Gaskets
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Metal gaskets
- UNSPSC Family ID: 18
- UNSPSC Family Name: Gaskets and seals
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
