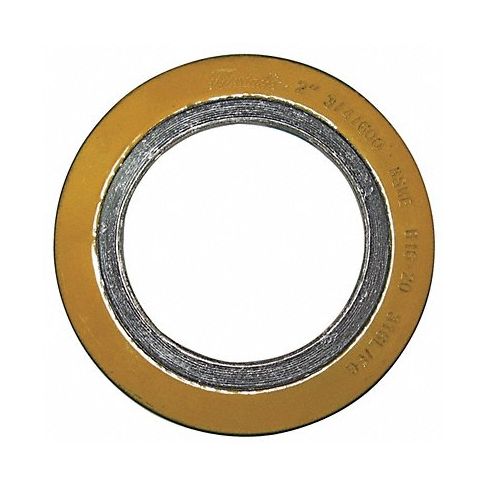

Spiral Wound Metal Gasket 1-1/4In 316SS MPN:CG

Metal-Reinforced Spiral-Wound Ring Gaskets
Meet ANSI B16.20.
Flexitallic CG

• Temp. range: -150° to 842°F
316 stainless steel windings with flexible graphite filler. Feature an external ring that centers the gasket on the flange face. Provides additional radial strength to help prevent gasket blowout and acts as a compression stop. General purpose gasket suitable for use with raised face and flat face flanges.

Technical Specifications

• Item Spiral Wound Metal Gasket
• Type ANSI class 300/400/600 lb flange
• Pipe Size 1 1/4 in
• Outside Dia. 3 1/4 in
• Inside Dia. 1 7/8 in
• Thickness 11/64 in
• Material of Construction 316SS and Flexible Graphite
• Temp. Range (F) -320 to 842
• Color Gray Stripe, Green Band
• Metal Detectable Yes
• Standards ASME B16.20, ASME/ANSI Pressure Class-300-400-600 LB

Manufacturer Details

• Manufacturer: Flexitallic
• Condensed Mfg Number: CG
• MPN: CG

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8484100000
• GDS Category Name: Sheet and Ring Gaskets
• GDS Family Name: Gaskets
• GDS Segment Name: Plumbing
• UNSPSC: 31181503
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Gaskets
• UNSPSC Commodity ID: 03
• UNSPSC Commodity Name: Metal gaskets
• UNSPSC Family ID: 18
• UNSPSC Family Name: Gaskets and seals
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
