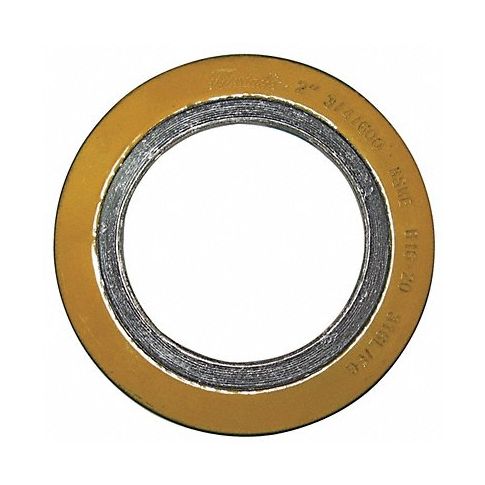

Spiral Wound Metal Gasket 1/2 In 316SS MPN:CG
Introducing Flexitallic's Spiral Wound Metal Gasket, designed to meet ANSI B16.20 standards for flanges. Made from durable 316 stainless steel with flexible graphite filler, this gasket features an external ring that centers it on the flange face and provides additional radial strength to help prevent blowout. It acts as a compression stop, ensuring a secure seal. This general-purpose gasket is suitable for use with both raised and flat face flanges, making it ideal for various applications in oil and gas, chemical, and power generation industries. Its temperature range of -150 to 842F means it can handle extreme conditions without compromising its performance. Choose Flexitallic's Spiral Wound Metal Gasket for reliable sealing solutions that can withstand the toughest environments.
Top product features:
- External ring to center the gasket on the flange face
- Additional radial strength to prevent blowout
- Suitable for use with both raised and flat face flanges
Top product applications:
- Oil and gas industry for flanges in pipelines, valves, and fittings
- Chemical industry for corrosive and high-temperature applications
- Power generation for steam systems and equipment in power plants
Technical Specifications
- Item Spiral Wound Metal Gasket
- Type ANSI class 300/400/600 lb flange
- Pipe Size 1/2 in
- Outside Dia. 2 1/8 in
- Inside Dia. 3/4 in
- Thickness 11/64 in
- Material of Construction 316SS and Flexible Graphite
- Temp. Range (F) -320 to 842
- Color Gray Stripe, Green Band
- Metal Detectable Yes
- Standards ASME B16.20, ASME/ANSI Pressure Class-300-400-600 LB
Manufacturer Details
- Manufacturer: Flexitallic
- Condensed Mfg Number: CG
- MPN: CG
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8484100000
- GDS Category Name: Sheet and Ring Gaskets
- GDS Family Name: Gaskets
- GDS Segment Name: Plumbing
- UNSPSC: 31181503
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Gaskets
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Metal gaskets
- UNSPSC Family ID: 18
- UNSPSC Family Name: Gaskets and seals
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
