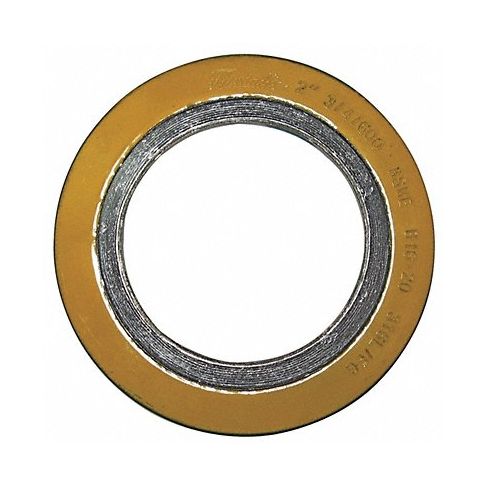

Spiral Wound Metal Gasket 3/4 In 316SS MPN:CG
The Spiral Wound Metal Gasket from Flexitallic is an excellent choice for plumbing systems, oil and gas industries, and chemical processing facilities. It features stainless steel windings with flexible graphite filler that offers durability and corrosion resistance in a wide temperature range (-150F to 842F). This gasket's metal-reinforced design provides extra strength and compression, helping prevent blowouts and ensuring a secure seal. The external ring helps center the gasket on flange faces, simplifying installation and providing an accurate fit every time. With its general purpose construction, this versatile gasket is suitable for raised face and flat face flanges, making it the ideal solution for various applications requiring reliable, long-lasting sealing power.
Top product features:
- Metal-reinforced spiral-wound design for extra strength and compression.
- Made of stainless steel windings and flexible graphite filler for durability and corrosion resistance.
- Wide temperature range (-150F to 842F) suitable for various applications.
Top product applications:
- Pipe flange sealing in plumbing systems.
- Sealing of pipes and valves in chemical processing plants.
- Securing connections in oil and gas refining equipment.
Technical Specifications
- Item Spiral Wound Metal Gasket
- Type ANSI class 150 lb flange
- Pipe Size 3/4 in
- Outside Dia. 2 1/4 in
- Inside Dia. 1 in
- Thickness 11/64 in
- Material of Construction 316SS and Flexible Graphite
- Temp. Range (F) -320 to 842
- Color Gray Stripe, Green Band
- Metal Detectable Yes
- Standards ASME B16.20, ASME/ANSI Pressure Class-150 LB
Manufacturer Details
- Manufacturer: Flexitallic
- Condensed Mfg Number: CG
- MPN: CG
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8484100000
- GDS Category Name: Sheet and Ring Gaskets
- GDS Family Name: Gaskets
- GDS Segment Name: Plumbing
- UNSPSC: 31181503
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Gaskets
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Metal gaskets
- UNSPSC Family ID: 18
- UNSPSC Family Name: Gaskets and seals
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
