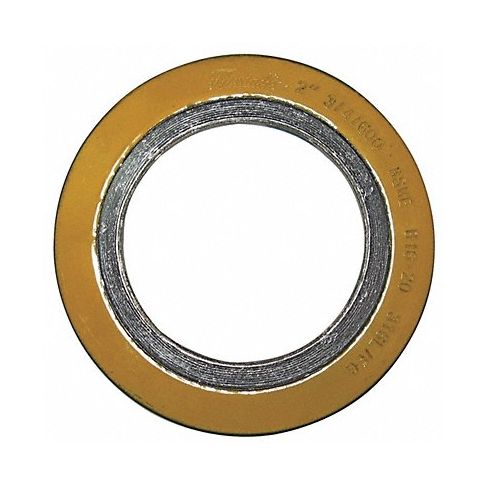

Spiral Wound Metal Gasket 1/2 In 316SS MPN:CG
Spiral Wound Metal Gasket 1/2 In 316SS
This spiral wound metal gasket is made of durable 316 stainless steel material, featuring an intricate design which allows it to withstand temperatures ranging from -40F to 800F (-40C to 425C). Its ability to resist corrosion makes it perfect for marine or food processing environments where harsh chemical exposure may occur. Industries benefiting from this gasket's performance include oil and gas, pharmaceuticals, petrochemical refineries, pulp & paper mills and various water treatment systems where pressure requirements demand precision and reliability during operations.
Metal-Reinforced Spiral-Wound Ring GasketsMeet ANSI B16.20.Flexitallic CG • Temp. range: -150° to 842°F316 stainless steel windings with flexible graphite filler. Feature an external ring that centers the gasket on the flange face. Provides additional radial strength to help prevent gasket blowout and acts as a compression stop. General purpose gasket suitable for use with raised face and flat face flanges.
Technical Specifications
- Item Spiral Wound Metal Gasket
- Type ANSI class 150 lb flange
- Pipe Size 1/2 in
- Outside Dia. 1 7/8 in
- Inside Dia. 3/4 in
- Thickness 11/64 in
- Material of Construction 316SS and Flexible Graphite
- Temp. Range (F) -320 to 842
- Color Gray Stripe, Green Band
- Metal Detectable Yes
- Standards ASME B16.20, ASME/ANSI Pressure Class-150 LB
Manufacturer Details
- Manufacturer: Flexitallic
- Condensed Mfg Number: CG
- MPN: CG
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8484100000
- GDS Category Name: Sheet and Ring Gaskets
- GDS Family Name: Gaskets
- GDS Segment Name: Plumbing
- UNSPSC: 31181503
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Gaskets
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Metal gaskets
- UNSPSC Family ID: 18
- UNSPSC Family Name: Gaskets and seals
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on September 28, 2023 10:00am UTC
Category: Gaskets
