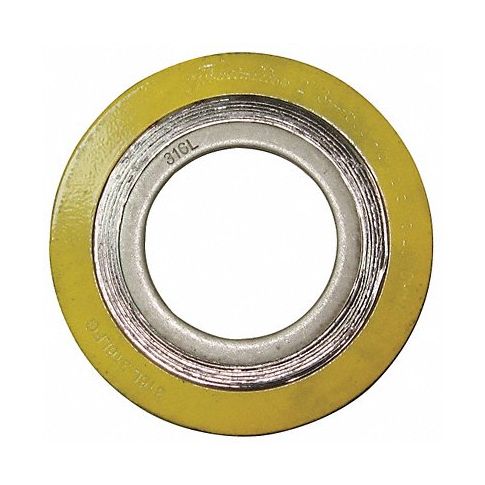

Spiral Wound Metal Gasket 2-1/2In 316SS MPN:CGI
The 2.5 inch 316 stainless steel spiral wound metal gasket offers exceptional corrosion resistance due to its high quality steel grade, making it suitable for extreme environments involving chemicals or wet conditions where other materials may fail. It comes in a flanged design which provides a pressure-tight seal between two surfaces and has excellent thermal stability that withstand temperature fluctuations between -40 degrees F to 800 degrees F, thus ensuring secure performance across various industries such as chemical processing, power generation or oil refineries, food and beverage, pulp and paper production, and marine vessels among other applications requiring dependable sealing solutions. Additionally, it features stainless steel reinforcement ribs which help increase its load capacity to withstand greater pressures compared to non-reinforced gaskets.
Technical Specifications
- Item Spiral Wound Metal Gasket
- Type ANSI class 300/400/600 lb flange
- Pipe Size 2 1/2 in
- Outside Dia. 5 1/8 in
- Inside Dia. 2 5/8 in
- Thickness 11/64 in
- Material of Construction 316SS and Flexible Graphite
- Temp. Range (F) -320 to 842
- Color Gray Stripe, Green Band
- Metal Detectable Yes
- Includes Inner Ring
- Standards ASME B16.20, ASME/ANSI Pressure Class-300-400-600 LB
Manufacturer Details
- Manufacturer: Flexitallic
- Condensed Mfg Number: CGI
- MPN: CGI
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8484100000
- GDS Category Name: Sheet and Ring Gaskets
- GDS Family Name: Gaskets
- GDS Segment Name: Plumbing
- UNSPSC: 31181503
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Gaskets
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Metal gaskets
- UNSPSC Family ID: 18
- UNSPSC Family Name: Gaskets and seals
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
