Spiral Wound Metal Gasket 1 In 316SS MPN:CGI

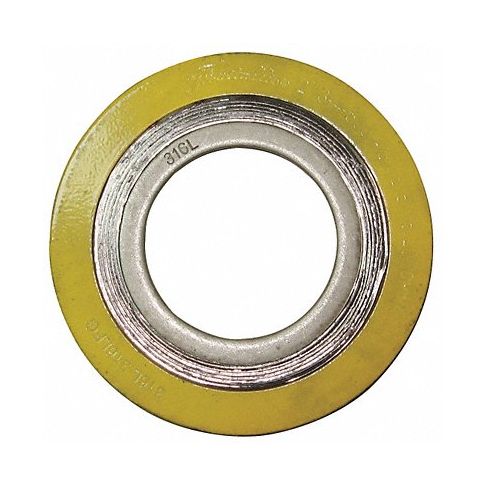

Spiral Wound Metal Gasket 1 In 316SS
Flexitallic Spiral Wound Metal Gasket 1 In 316SS is an excellent choice for high-pressure and temperature service or when dealing with toxic or corrosive materials. With a temperature range of -150 to 842F, this gasket features 316 stainless steel windings reinforced with flexible graphite filler and includes an inner ring for a reliable seal. Suitable for flat face and raised face flanges, it's designed for ANSI class 300/400/600 lb flanges and comes in pipe size 1 inch with outside diameter of 2 7/8 inches and inside diameter of 1 1/16 inches. It offers superior performance in plumbing applications, ensuring maximum efficiency and durability.
Top product features:
- Spiral-wound construction for tight seals
- Made from durable and corrosion-resistant 316 stainless steel
- Reinforced with flexible graphite filler for enhanced pressure resistance
Top product applications:
- Chemical processing plants where corrosion-resistant materials are required.
- Offshore oil and gas drilling platforms that operate in harsh conditions.
- Nuclear power plants that need to contain radioactive materials securely
Metal-Reinforced Spiral-Wound Ring GasketsMeet ANSI B16.20.Flexitallic CGI • Temp. range: -150° to 842°F316 stainless steel windings with flexible graphite filler. Include inner ring. Suitable for use with flat face and raised face flanges and specified for high pressure/temperature service or where toxic or corrosive materials are present.
Technical Specifications
- Item Spiral Wound Metal Gasket
- Type ANSI class 300/400/600 lb flange
- Pipe Size 1 in
- Outside Dia. 2 7/8 in
- Inside Dia. 1 1/16 in
- Thickness 11/64 in
- Material of Construction 316SS and Flexible Graphite
- Temp. Range (F) -320 to 842
- Color Gray Stripe, Green Band
- Metal Detectable Yes
- Includes Inner Ring
- Standards ASME B16.20, ASME/ANSI Pressure Class-300-400-600 LB
Manufacturer Details
- Manufacturer: Flexitallic
- Condensed Mfg Number: CGI
- MPN: CGI
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8484100000
- GDS Category Name: Sheet and Ring Gaskets
- GDS Family Name: Gaskets
- GDS Segment Name: Plumbing
- UNSPSC: 31181503
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Gaskets
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Metal gaskets
- UNSPSC Family ID: 18
- UNSPSC Family Name: Gaskets and seals
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on September 28, 2023 10:00am UTC
Category: Gaskets
