Spiral Wound Metal Gasket 1/2 In 316SS MPN:CGI

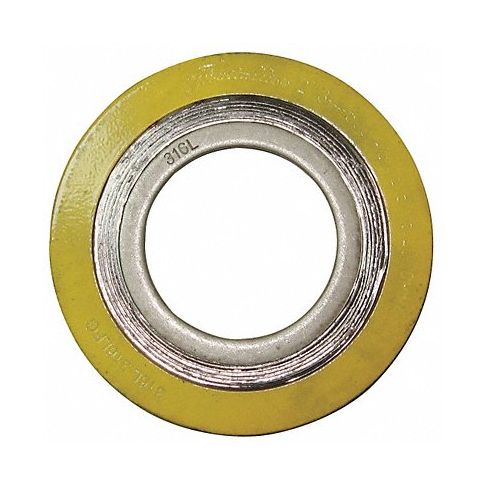

Spiral Wound Metal Gasket 1/2 In 316SS
Spiral wound metal gaskets made from Type 316 stainless steel demonstrate exceptional resistance against corrosion and are ideal for environments involving caustic chemicals or high-temperature applications up to 1800F (982C). Its double-wrapped coiled design helps distribute pressure uniformly across the gasket surface for consistent sealing effectiveness, eliminating any leaks or potential damage. Available in customizable dimensions and tailored solutions, this spiral wound metal gasket reduces downtime, minimizes maintenance costs, while maintaining long-lasting performance compliant with international standards for leak prevention in numerous industrial processes such as petroleum refineries or pulp & paper mills.
Metal-Reinforced Spiral-Wound Ring GasketsMeet ANSI B16.20.Flexitallic CGI • Temp. range: -150° to 842°F316 stainless steel windings with flexible graphite filler. Include inner ring. Suitable for use with flat face and raised face flanges and specified for high pressure/temperature service or where toxic or corrosive materials are present.
Technical Specifications
- Item Spiral Wound Metal Gasket
- Type ANSI class 300/400/600 lb flange
- Pipe Size 1/2 in
- Outside Dia. 2 1/8 in
- Inside Dia. 9/16 in
- Thickness 11/64 in
- Material of Construction 316SS and Flexible Graphite
- Temp. Range (F) -320 to 842
- Color Gray Stripe, Green Band
- Metal Detectable Yes
- Includes Inner Ring
- Standards ASME B16.20, ASME/ANSI Pressure Class-300-400-600 LB
Manufacturer Details
- Manufacturer: Flexitallic
- Condensed Mfg Number: CGI
- MPN: CGI
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8484100000
- GDS Category Name: Sheet and Ring Gaskets
- GDS Family Name: Gaskets
- GDS Segment Name: Plumbing
- UNSPSC: 31181503
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Gaskets
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Metal gaskets
- UNSPSC Family ID: 18
- UNSPSC Family Name: Gaskets and seals
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on September 28, 2023 10:00am UTC
Category: Gaskets
