Spiral Wound Metal Gasket 3/4 In 316SS MPN:CGI

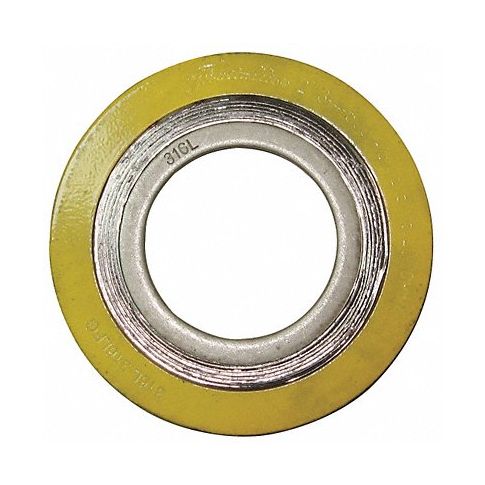

Spiral Wound Metal Gasket 3/4 In 316SS
The Spiral Wound Metal Gasket 3/4 In 316SS is ideal for various industries requiring robust sealing solutions for high-temperature, high-pressure environments. It is specifically designed to accommodate mechanical, chemical, and thermal stress effectively, making it a perfect fit for sectors such as oil & gas, pharmaceuticals, petrochemical, food processing, and water treatment. This gasket offers numerous benefits, including outstanding chemical resistance, excellent recovery ability after compression set, wide temperature range performance, superior torque retention capabilities and easy installation due to its spiral wound construction.
Metal-Reinforced Spiral-Wound Ring GasketsMeet ANSI B16.20.Flexitallic CGI • Temp. range: -150° to 842°F316 stainless steel windings with flexible graphite filler. Include inner ring. Suitable for use with flat face and raised face flanges and specified for high pressure/temperature service or where toxic or corrosive materials are present.
Technical Specifications
- Item Spiral Wound Metal Gasket
- Type ANSI class 150 lb flange
- Pipe Size 3/4 in
- Outside Dia. 2 1/4 in
- Inside Dia. 13/16 in
- Thickness 11/64 in
- Material of Construction 316SS and Flexible Graphite
- Temp. Range (F) -320 to 842
- Color Gray Stripe, Green Band
- Metal Detectable Yes
- Includes Inner Ring
- Standards ASME B16.20, ASME/ANSI Pressure Class-150 LB
Manufacturer Details
- Manufacturer: Flexitallic
- Condensed Mfg Number: CGI
- MPN: CGI
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8484100000
- GDS Category Name: Sheet and Ring Gaskets
- GDS Family Name: Gaskets
- GDS Segment Name: Plumbing
- UNSPSC: 31181503
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Gaskets
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Metal gaskets
- UNSPSC Family ID: 18
- UNSPSC Family Name: Gaskets and seals
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on September 28, 2023 10:00am UTC
Category: Gaskets
