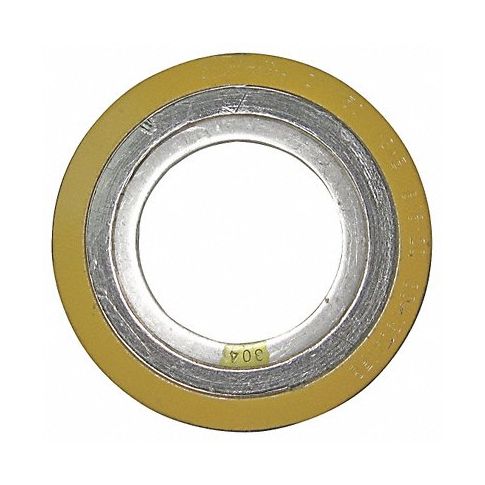

Spiral Wound Metal Gasket 2 In 304SS MPN:CGI
The Spiral Wound Metal Gasket from Flexitallic is an exceptional choice for applications in need of a durable and reliable sealing solution. Constructed from high-quality 304SS stainless steel, this gasket offers superior resistance to corrosion and wear. Its spiral wound design provides maximum pressure tightness, ensuring a secure fit that won't slip or leak under harsh conditions. Ideally suited for use in ANSI class 150 lb flanges, this gasket is designed for pipes with a 2-inch outside diameter and a 2 3/16-inch inside diameter. Offering unmatched reliability and performance, the Spiral Wound Metal Gasket from Flexitallic is the perfect choice for anyone seeking to enhance their system's overall efficiency and durability. Order yours today!
Top product features:
- Constructed from high-quality 304SS stainless steel for corrosion and wear resistance.
- Spiral wound design provides maximum pressure tightness and secure fit.
- Ideal for ANSI class 150 lb flanges with a 2-inch outside diameter and a 2 3/16-inch inside diameter.
Top product applications:
- Chemical processing plants require secure and durable gaskets for containing chemicals within their vessels.
- Pulp and paper mills need to seal pipe connections to prevent leakage of hazardous materials or fluid loss during production processes.
- Food and beverage industries use high-quality gaskets to ensure hygiene and prevent contamination of products.
Technical Specifications
- Item Spiral Wound Metal Gasket
- Type ANSI class 150 lb flange
- Pipe Size 2 in
- Outside Dia. 4 1/8 in
- Inside Dia. 2 3/16 in
- Thickness 11/64 in
- Material of Construction 304SS and Flexible Graphite
- Temp. Range (F) -320 to 842
- Color Gray Stripe, Yellow Band
- Metal Detectable Yes
- Includes Inner Ring
- Standards ASME B16.20, ASME/ANSI Pressure Class-150 LB
Manufacturer Details
- Manufacturer: Flexitallic
- Condensed Mfg Number: CGI
- MPN: CGI
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8484100000
- GDS Category Name: Sheet and Ring Gaskets
- GDS Family Name: Gaskets
- GDS Segment Name: Plumbing
- UNSPSC: 31181503
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Gaskets
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Metal gaskets
- UNSPSC Family ID: 18
- UNSPSC Family Name: Gaskets and seals
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on October 25, 2023 10:32am UTC Category: Gaskets
