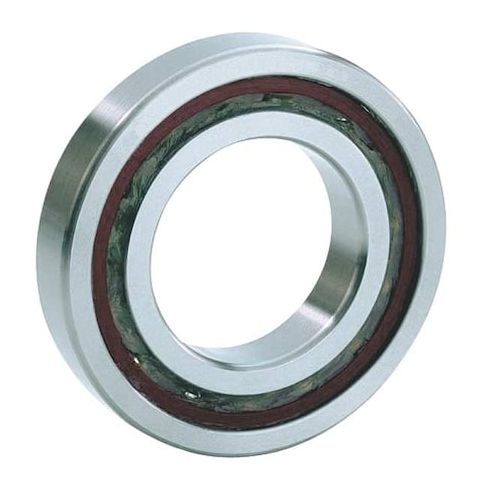

Angular Contact BRG, 85 mm Bore MPN:7217-B-TVP-UA
Angular Contact BRG, 85 mm Bore
This high-performance Angular Contact Ball Bearing is designed to provide smooth and efficient operation in demanding applications. With a 40-degree contact angle and a maximum speed of 4,500 RPM, it's ideal for use in high-speed machinery, gearboxes, and other industrial equipment. The bearing's open design and PA66 cage material ensure optimal lubrication and reduced friction, while its ABEC 5 rating guarantees precise tolerances. Suitable for use in temperatures ranging from -30°C to 120°C, this bearing is perfect for applications in the aerospace, automotive, and industrial sectors where reliability and performance are critical.
Top product features:
- Angular Contact Ball Bearing design allows for high precision and stability in applications with axial loads and radial loads in one direction.
- The bearing's 40-degree contact angle enables it to handle loads in both directions, making it suitable for applications where space is limited.
- The bearing's maximum operating speed of 4,500 RPM allows for high-speed applications and efficient operation.
Top product applications:
- High-speed gearboxes and gearmotors
- Machine tool spindles and drives
- Robotics and CNC machine applications
Angular Contact Ball Bearing, Bearing Industry Number 7217, Bore Diameter 85 mm, Cage Material PA66, Closure Open, Contact Angle 40 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Not Available, Maximum Speed 4,500 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -30 Degrees C, Number of Rows One, Outside Diameter 150 mm, Overall Width 28 mm, System of Measurement Metric, ABEC Rating 5, Dynamic Radial Load Capacity 97,000 N, Housing Fillet Radius 1 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.20
- Package Width: 3.00
- Package Height: 3.00
- Package Weight: 3.99
Product info last updated on April 19, 2026 8:16am UTC
Category: Bearings, V-belts and Power Transmission Equipment
