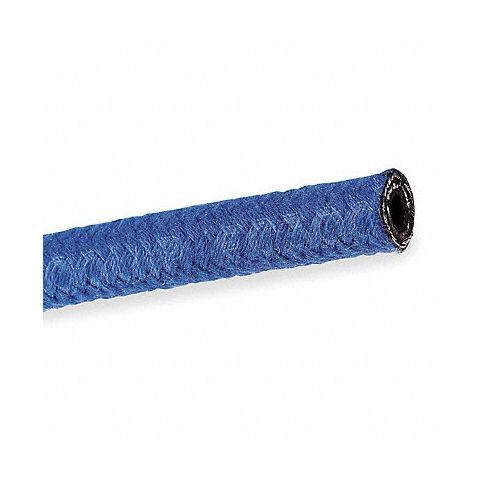

Hydraulic Hose 5/16 ID 25 ft L MPN:FC300-06-25

Eaton Aeroquip FC300 bulk hydraulic hoses resist high temperatures and abrasion. They are used in hydraulic applications with petroleum-based fluids, air, gasoline, fuel, lubricating oils, fire-resistant hydraulic fluids, and other industrial fluids. The hoses have an elastomer tube and a polyester braided cover. They are reinforced with a single wire braid. Eaton Aeroquip FC300 hydraulic hoses are compatible with Aeroquip 100R5 crimpable fittings or Aeroquip reusable fittings.

Bulk hydraulic hoses can be cut to a desired length, and compatible hose fittings can be attached to the ends of the hoses to create custom hydraulic hose assemblies that can be connected to equipment. Hydraulic hoses are used for transferring fluids in high-pressure petroleum- and water-based hydraulic systems commonly found on industrial, mining, and manufacturing equipment. These hoses are reinforced to maximize their strength.

Technical Specifications

• Item Hydraulic Hose
• Hose Inside Dia. 5/16 in
• Hose Outside Dia. 1 1/64 in
• Hose Length 25 ft
• Hose Tube Material AQP Elastomer
• Hose Cover Material Polyester
• Hose Reinforcement Type Braid
• Hose Reinforcement Material Polyester
• Hose Color Blue
• Series FC300
• Max. Working Pressure @ 70 F 2,250 psi
• Safety Factor 4:1
• Temp. Range -55 Degrees to 302 Degrees F
• Standards SAE 100R5
• Hose Configuration Bulk Hose
• Compatible Chemicals Air, Automatic Transmission Fluid, Brake Fluid, Diesel Fuel, Ethylene Glycol, Fresh Water, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Salt Water, Solvents
• Not Recommended Chemicals Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Antifreeze (Coolant), Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Ethyl (Ethanol), Formic Acid, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Methyl (Methanol), Methyl Ethyl Ketone (MEK), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%)

Manufacturer Details

• Manufacturer: Eaton Aeroquip
• Condensed Mfg Number: FC3000625
• MPN: FC300-06-25

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 4009310000
• GDS Category Name: Bulk Hydraulic Hoses
• GDS Family Name: Hydraulic Hoses
• GDS Segment Name: Hydraulics
• UNSPSC: 40142005
• UNSPSC Class ID: 20
• UNSPSC Commodity Name: Hoses
• UNSPSC Commodity ID: 05
• UNSPSC Commodity Name: Material handling hoses
• UNSPSC Family ID: 14
• UNSPSC Family Name: Fluid and gas distribution
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
