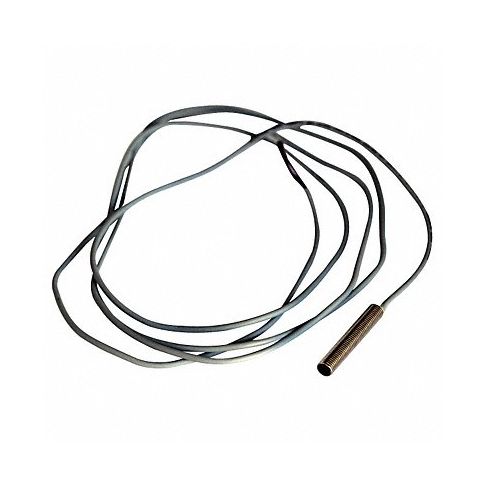

Proximity Sensor Inductive 2mm NPN NO MPN:E57-08GU02-C

This cylindrical proximity sensor is designed for use with metallic targets. It features stainless steel construction and LED status indicator, and is engineered to resist the ingress of solid foreign objects such as dirt, dust, lint, fibers, and flyings. It also helps to resist damage from the ingress of water from spraying or submersion, as well as splashing and seepage of oil and coolants.

Technical Specifications

• Item Cylindrical Proximity Sensor
• Proximity Sensing Method Inductive
• Proximity Sensor Diameter 8.0 mm
• Proximity Sensor Power Requirement 10 to 30V DC
• Shielded / Unshielded Unshielded
• Proximity Sensor Operating Frequency 2,000 Hz
• Proximity Sensor Output Circuit Type 3 Wire NPN
• Max. Detecting Distance 2.0 mm
• Proximity Sensor Electrical Connection 2m Cable
• Basic Proximity Sensor Case Material Metal
• Output Mode NO
• NEMA Rating 6P
• IP Rating 67, 69K
• Case Material Nickel Plated Brass
• Length 45 mm
• Operating Temp. Range -13 Degrees to 158 Degrees F
• Max. Current Load 100mA
• Description/Special Features 360 Degrees Viewable LED Output Indication
• Standards cCSAus, CE Compliance

Manufacturer Details

• Manufacturer: Eaton
• Condensed Mfg Number: E5708GU02C
• MPN: E57-08GU02-C

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• GDS Category Name: Cylindrical Proximity Sensors and Switches
• GDS Family Name: Switches
• GDS Segment Name: Electrical
• UNSPSC: 41111926
• UNSPSC Class ID: 19
• UNSPSC Commodity Name: Indicating and recording instruments
• UNSPSC Commodity ID: 26
• UNSPSC Commodity Name: Proximity sensors
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
