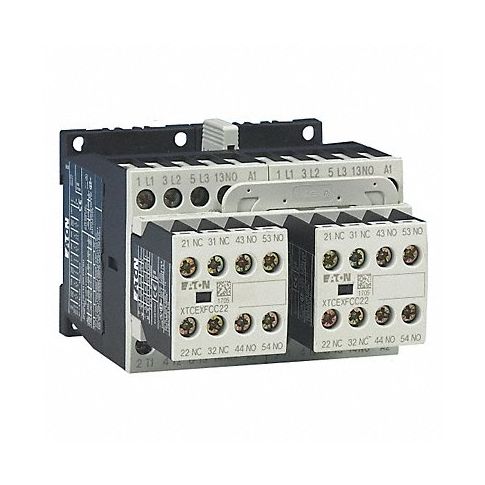

H2532 IEC Magnetc Cntactr 24VDC 12A 1NC/2NO MPN:XTCR012B21TD

Designed for industrial applications, Eaton XT/DIL M Series reversing contactors can be combined with electronic overload relays to make a starter. All contactors are available for panel and DIN-rail mounting. Each features low-wattage coils, auxiliary contacts, front access coil terminals, toolless assembly, and dual clamps for multiwire.

Technical Specifications

• Item IEC Magnetic Contactor
• Full Load Amps-Inductive 12 A
• Full Load Amps-Resistive 22 A
• Number of Poles 3
• Coil Volts 24V DC
• Reversing Yes
• HP @ 1 Phase - 120V 1/2 hp
• HP @ 1 Phase - 240V 2 hp
• HP @ 3 Phase - 208V 3 hp
• HP @ 3 Phase - 240V 3 hp
• HP @ 3 Phase - 480V 10 hp
• HP @ 3 Phase - 575V 10 hp
• Aux. Contact Configuration 2NO/1NC
• Enclosure NEMA Rating No Enclosure
• Height 3.54 in
• Width 3.54 in
• Depth 4.92 in
• Standards UL/CE/CSA/CCC/ATEX/IEC EN 60947
• Frame / Series / Class / Code Frame B

Manufacturer Details

• Manufacturer: Eaton
• Condensed Mfg Number: XTCR012B21TD
• MPN: XTCR012B21TD

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: RO
• CA Prop 65 Wht Label: N

Classification Details

• GDS Category Name: IEC Magnetic Contactors
• GDS Family Name: Starters and Contactors
• GDS Segment Name: Electrical
• UNSPSC: 39121529
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 29
• UNSPSC Commodity Name: Contactors
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
