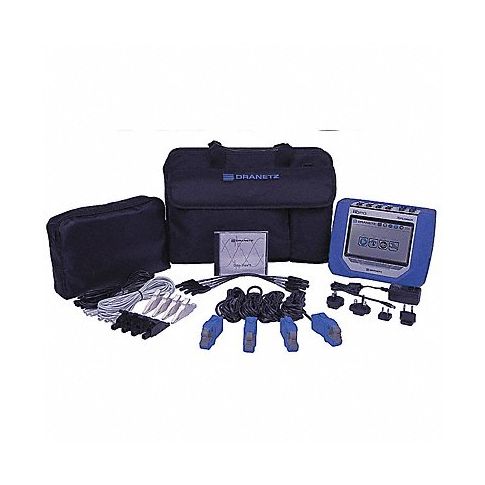

Power Quality Analyzer Kit 10A Max MPN:HDPQ-P-XA10PKG
Introducing the Power Quality Analyzer Kit from Dranetz - your ultimate solution for monitoring and analyzing power quality in industrial, commercial, and residential settings. With a max wattage of 100TW and 4-phase measurement capabilities, this kit is perfect for identifying problems related to voltage fluctuations, frequency variations, and electrical harmonics that can cause equipment damage or malfunction. Whether you're responsible for maintaining an entire facility or simply looking to ensure your home appliances are operating safely and efficiently, the Dranetz HDPQ delivers exceptional performance at an affordable price point. Plus, with its easy-to-use interface and remote monitoring capabilities via Smartphone or tablet, you'll have all the information you need right at your fingertips - no matter where you are. Invest in peace of mind today with the Dranetz Power Quality Analyzer Kit.
Top product features:
- Built-in 7 color wide screen LCD user interface for monitoring setup and data review.
- Remote access to review data and change settings from virtually any Smartphone or tablet mobile device.
- Support for 4 phases for identifying problems related to voltage fluctuations, frequency variations, and electrical harmonics.
Top product applications:
- Identifying and diagnosing power quality issues in commercial buildings and data centers.
- Monitoring electrical infrastructure in factories and industrial facilities.
- Troubleshooting and optimizing electrical systems in residential homes and apartment buildings.
Technical Specifications
- Item Power Quality Analyzer Kit
- Phase 4
- Max. Watts 100TW
- Kit Current Capability 1 to 10A
- Max. VA 100TVA
- Max. AC Amps 10
- Current Accuracy +/-0.1%
- Current Channels 4
- Max. AC Voltage 1,000
- Max. DC Voltage 1000V
- Voltage Accuracy +/-0.1%
- Voltage Channels 4
- Calibration Frequency 45 to 65 Hz
- Power Factor 0 to 1
- AC Response True RMS
- Display Color LCD Touch Screen
- Display Resolution 800 x 480
- Harmonic Capture Range 127/63
- Min. Transient Duration 32 mS
- Sampling Rate 512 s/c
- Crest Factor I=3, V=2
- Safety Rating CAT III 1000V, CAT IV 600V
- Data Logging Yes
- Peak Capture Yes
- Storage 4 GB
- Calibration Certificate NIST
- Includes (4) TR2510B CT's, AC Power Supply, Dran-View Ent, Dranetz HDPQ Xplorer, Soft Carry Case, Voltage Cable Set
- Manufacturers Warranty Length 3 yr
Manufacturer Details
- Manufacturer: Dranetz
- Condensed Mfg Number: HDPQPXA10PKG
- MPN: HDPQ-P-XA10PKG
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9030840000
- GDS Category Name: Power Quality Analyzers Loggers and Recorders
- GDS Family Name: Electrical Power Testing
- GDS Segment Name: Test Instruments
- UNSPSC: 41113708
- UNSPSC Class ID: 37
- UNSPSC Commodity Name: Electronic and communication measuring and testing instruments
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Power meters
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
