Push to Exit Button 24VDC Wt/Blk Button MPN:W5287-P23DAxE1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-400A81

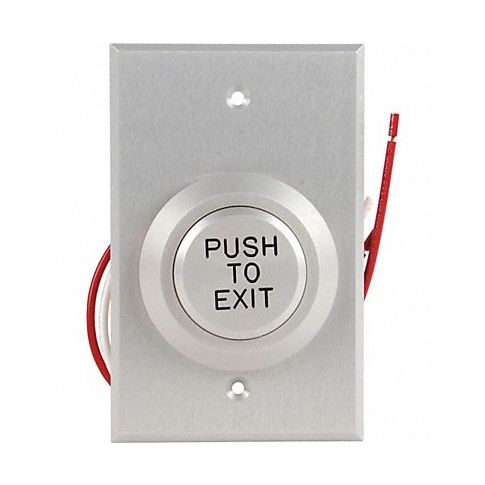

Push to Exit Button 24VDC Wt/Blk Button
The Push to Exit Button 24VDC Wt/Blk from Dortronics is an excellent solution for enhancing access control in commercial environments. Made in the USA and sold by a Veteran-Owned Business, this pneumatic switch action button features a sleek aluminum construction with a clear anodized finish. Designed as a single-gang device, it measures 13.78 x 5.12 x 1.68mm and can be installed in various applications such as elevators, stairwells, restrooms, and more. Its push function automatically unlocks doors, providing users with easy egress while maintaining security. Ideal for facilities that require a durable and reliable exit button, the Push to Exit Button 24VDC Wt/Blk is a must-have addition to your access control system.
Top product features:
- Made in the USA <-This feature ensures high-quality production and supports local labor.
- Veteran-Owned Business This feature provides assurance that a veteran has been employed, invested, or helped by this product.
- Clear Anodized Finish This feature offers a sleek, durable look while preventing corrosion or damage to the device.
Top product applications:
- Restroom Emergency Exit The pneumatic switch action enables quick and easy push functionality for exiting from restrooms in emergencies or for those with limited mobility.
- Commercial Facility Safety Its clear anodized finish ensures durability against vandalism and harsh conditions while providing easy access to a safe egress point.
- Fire Codes Compliance This push to exit button complies with fire codes and life safety standards, enhancing the safety and security of any commercial facility.
Buy Dortronics item #W5287-P23DAxE1 ✯ Made in the USA ✯ and sold by a Veteran-Owned Business.
Technical Specifications
- Item Push to Exit Button
- Type Single Gang
- Switch Action Pneumatic
- Material Aluminum
- Finish Clear Anodized
- Depth 1/2 in
- Height 3 in
- Width 3 in
- Button Color White/Black
- Color Silver
- Button Dia. 1-1/2 in
- Rating 10A @ 125V AC
- Input Voltage 24V DC
- Output DPST Relay
- Amps AC 4
- Event Audit Trail No
- Keypad No
- Cylinder No
- Standards MEA Approved, UL Listed
- For Use With Access Controls
Manufacturer Details
- Manufacturer: Dortronics
- Condensed Mfg Number: W5287P23DAxE1
- MPN: W5287-P23DAxE1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8301406030
- GDS Category Name: Electromagnetic Lock Activation Devices
- GDS Family Name: Electromagnetic Locking Systems
- GDS Segment Name: Hardware
- UNSPSC: 46171503
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Locks and security hardware and accessories
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Lock sets
- UNSPSC Family ID: 17
- UNSPSC Family Name: Security surveillance and detection
- UNSPSC Segment ID: 46
- UNSPSC Segment Name: Defense and Law Enforcement and Security and Safety Equipment and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B00EO02B7W, B00EO01WU4, B0991RPZL2
Product info last updated on November 17, 2023 12:16pm UTC Category: Electromagnetic Locking Systems
