3Pc Safe Wheel Znc Stl M20-2.5 47.5mm 10 MPN:NMC 2080 M GEO
3Pc Safe Wheel Znc Stl M20-2.5 47.5mm 10
Introducing Disc-Lock locking nuts - the ultimate solution for high-stress and safety-critical applications! Designed with interlocking cams that tighten under shock and vibration, these locking nuts provide superior clamp load retention to maintain joint integrity. Featuring a 1-piece construction and compatibility with Grade 5, grade 8, and stronger bolts, they are suitable for various industries, including automotive, aerospace, and manufacturing. Easy to install and remove using standard equipment, Disc-Lock locking nuts are reusable, durable, and engineered for maximum performance in demanding environments. Ensure optimal safety and reliability with Disc-Lock locking nuts today!
Top product features:
- Interlocking cams for tightening under shock and vibration
- Reusable design with standard equipment installation and removal
- Compatibility with Grade 5, grade 8, and stronger bolts
Top product applications:
- High-stress, vibration-sensitive areas
- Safety-critical applications
- Bolted clamp load maintenance in demanding environments

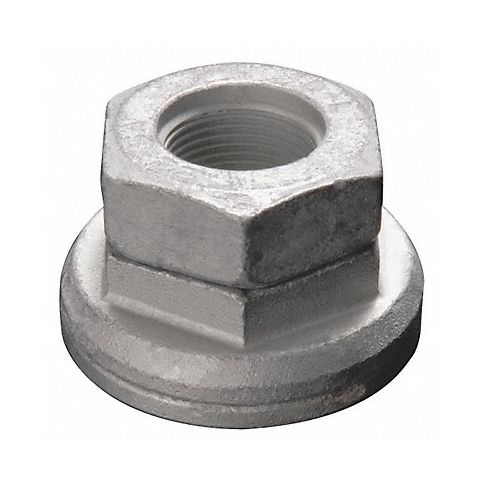

Disc-Lock™ locking nuts get tighter under shock and vibration—forces that cause other locknuts to come loose. The proprietary design is great for high-stress, vibration-sensitive areas and in safety-critical applications. Interlocking cams form the free-spinning, 1-pc. locking nut assembly. The top threaded hexagon nut has cams underneath and a pilot that retains the washer. The bottom hex flange washer has a smooth bearing surface and cams on top. Under vibration and shock, the cams try to rise against each other, locking the assembly to maintain the bolted clamp load and protect joint integrity. Easily installed and removed with standard equipment—they're reusable. Can be used with Grade 5 (Class 8.8), grade 8 (Class 10.9), and stronger bolts.
Technical Specifications
- Item Lock Nut
- Nut Style Safety Wheel Lock Nut
- System of Measurement Metric
- Basic Material Steel
- Fastener Finish Zinc Plated
- Fastener Thread Direction Right Hand
- Fastener Thread Type Metric
- Dia./Thread Size M20-2.50
- Width Across Flats 34.0 mm
- Nut Height 29.0 mm
- Flange Dia. 47.5 mm
Manufacturer Details
- Manufacturer: Disc-Lock
- Condensed Mfg Number: NMC2080MGEO
- MPN: NMC 2080 M GEO
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: TW
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7318220000
- GDS Category Name: Lock Nuts with Integrated Washer
- GDS Family Name: Nuts
- GDS Segment Name: Fasteners
- UNSPSC: 31161716
- UNSPSC Class ID: 17
- UNSPSC Commodity Name: Nuts
- UNSPSC Commodity ID: 16
- UNSPSC Commodity Name: Locknuts
- UNSPSC Family ID: 16
- UNSPSC Family Name: Hardware
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
