2-Piece Wedge Znc Stl 7/16 -20 1in 50PK MPN:NSF 204-01-565

Discount: See in Cart
Free Shipping
In Stock
Brand: Disc-Lock
Part #: NSF 204-01-565
SKU
226-CXG-36RM09
$101.99
2-Piece Wedge Znc Stl 7/16 -20 1in 50PK

Introducing Disc-Lock locking nuts - the perfect solution for secure fastening in high-stress environments with unmatched durability against shock and vibration! Engineered with proprietary wedge-lock technology, these reusable nuts maintain bolted clamp loads under extreme conditions while allowing easy installation and removal with standard equipment. Industry compatible, Disc-Lock locking nuts are ideal for use in safety-critical applications such as aerospace, military, and transportation industries, ensuring secure fastening without compromising on strength or integrity. Upgrade your bolting system with Disc-Lock locking nuts - the future of secure fastening!

Top product features:

  • Wedge-lock design: Allows for secure fastening in high-stress environments while maintaining bolted clamp loads under extreme conditions.
  • Reusable: Can be installed and removed multiple times without compromising strength or integrity of the product.
  • Industry compatible: Works with a wide range of industries such as aerospace, military, and transportation where secure fastening is essential.

Top product applications:

  • Aerospace industry: Secure fastening in high-stress environments such as airframes and engine mountings to maintain bolted clamp load and protect joint integrity.
  • Military applications: Use in safety-critical areas where shock and vibration resistance is essential, such as vehicle suspensions, weapon systems, and aircraft.
  • Transportation industry: Secure fastening in train, bus, and truck wheel assemblies, as well as other high-stress components on moving vehicles to maintain clamp load and prevent loosening due to vibration.

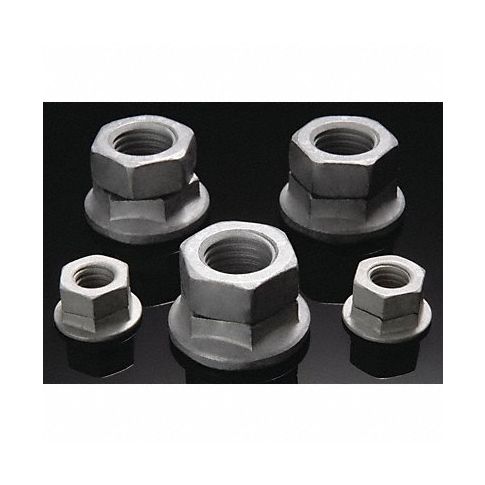

Disc-Lock™ locking nuts get tighter under shock and vibration—forces that cause other locknuts to come loose. The proprietary design is great for high-stress, vibration-sensitive areas and in safety-critical applications. Interlocking cams form the free-spinning, 1-pc. locking nut assembly. The top threaded hexagon nut has cams underneath and a pilot that retains the washer. The bottom hex flange washer has a smooth bearing surface and cams on top. Under vibration and shock, the cams try to rise against each other, locking the assembly to maintain the bolted clamp load and protect joint integrity. Easily installed and removed with standard equipment—they're reusable. Can be used with Grade 5 (Class 8.8), grade 8 (Class 10.9), and stronger bolts.

Technical Specifications

  • Item Lock Nut
  • Nut Style Wedge Lock Nut
  • System of Measurement Inch
  • Basic Material Steel
  • Fastener Finish Zinc Plated
  • Fastener Thread Direction Right Hand
  • Fastener Thread Type UNF (Fine)
  • Dia./Thread Size 7/16"-20
  • Material Grade Grade 8
  • Width Across Flats 3/4 in
  • Flange Dia. 1.0 in

Manufacturer Details

  • Manufacturer: Disc-Lock
  • Condensed Mfg Number: NSF20401565
  • MPN: NSF 204-01-565

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: TW
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 7318220000
  • GDS Category Name: Lock Nuts with Integrated Washer
  • GDS Family Name: Nuts
  • GDS Segment Name: Fasteners
  • UNSPSC: 31161716
  • UNSPSC Class ID: 17
  • UNSPSC Commodity Name: Nuts
  • UNSPSC Commodity ID: 16
  • UNSPSC Commodity Name: Locknuts
  • UNSPSC Family ID: 16
  • UNSPSC Family Name: Hardware
  • UNSPSC Segment ID: 31
  • UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

  • Not For Sale In: HI AK PR
