2-Piece Wedge Znc Stl M16-2 32mm 50PK MPN:NMC 207-01-565

Discount: See in Cart
Free Shipping
In Stock
Brand: Disc-Lock
Part #: NMC 207-01-565
SKU
226-CXG-36RM06
$129.29

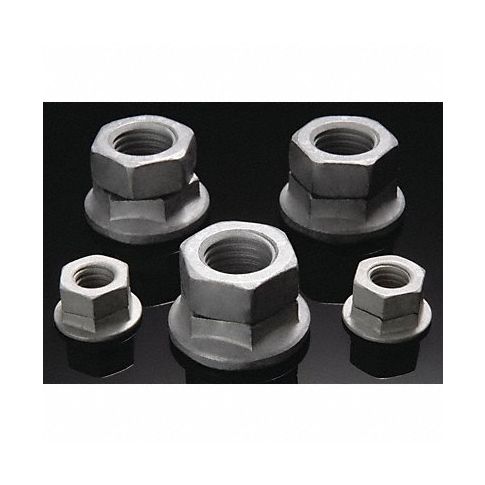

2-Piece Wedge Znc Stl M16-2 32mm 50PK

Disc-Lock 2-Piece Wedge Zinc Stainless Steel Locking Nuts provide superior clamp load retention in high-stress applications subject to shock and vibration. These lock nuts are engineered with interlocking cams that tighten under force, ensuring bolted joints stay secure and maintained over time. The smooth bearing surface offers ease of installation, while the proprietary design enhances reliability in safety-critical operations. With a reusable construction, these locking nuts can be used with Grade 5 or stronger bolts, making them ideal for aerospace, automotive, and heavy machinery industries where durability and performance are paramount.

Top product features:

  • Shock and vibration resistance ensures bolted joints stay secure in high-stress environments
  • Interlocking cams self-locking mechanism provides enhanced reliability in safety critical applications
  • Compatibility with grade 5 or stronger bolts suitable for aerospace, automotive, and heavy machinery industries

Top product applications:

  • Aerospace used in high-stress environments subject to shock and vibration
  • Automotive in safety critical systems requiring enhanced clamp load retention
  • Heavy machinery for bolted joints that require reliability and durability in harsh conditions
Disc-Lock™ locking nuts get tighter under shock and vibration—forces that cause other locknuts to come loose. The proprietary design is great for high-stress, vibration-sensitive areas and in safety-critical applications. Interlocking cams form the free-spinning, 1-pc. locking nut assembly. The top threaded hexagon nut has cams underneath and a pilot that retains the washer. The bottom hex flange washer has a smooth bearing surface and cams on top. Under vibration and shock, the cams try to rise against each other, locking the assembly to maintain the bolted clamp load and protect joint integrity. Easily installed and removed with standard equipment—they're reusable. Can be used with Grade 5 (Class 8.8), grade 8 (Class 10.9), and stronger bolts.

Technical Specifications

  • Item Lock Nut
  • Nut Style Wedge Lock Nut
  • System of Measurement Metric
  • Basic Material Steel
  • Fastener Finish Zinc Plated
  • Fastener Thread Direction Right Hand
  • Fastener Thread Type Metric
  • Dia./Thread Size M16-2.00
  • Material Grade Class 10
  • Width Across Flats 24.0 mm
  • Nut Height 21.0 mm
  • Flange Dia. 32.0 mm

Manufacturer Details

  • Manufacturer: Disc-Lock
  • Condensed Mfg Number: NMC20701565
  • MPN: NMC 207-01-565

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: TW
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 7318220000
  • GDS Category Name: Lock Nuts with Integrated Washer
  • GDS Family Name: Nuts
  • GDS Segment Name: Fasteners
  • UNSPSC: 31161716
  • UNSPSC Class ID: 17
  • UNSPSC Commodity Name: Nuts
  • UNSPSC Commodity ID: 16
  • UNSPSC Commodity Name: Locknuts
  • UNSPSC Family ID: 16
  • UNSPSC Family Name: Hardware
  • UNSPSC Segment ID: 31
  • UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

  • Not For Sale In: HI AK PR
