2-Piece Wedge Znc Stl M10-1.5 20mm 50PK MPN:NMC 203-01-565

Discount: See in Cart
Free Shipping
In Stock
Brand: Disc-Lock
Part #: NMC 203-01-565
SKU
226-CXG-36RM02
2-Piece Wedge Znc Stl M10-1.5 20mm 50PK

Upgrade your bolted connections with Disc-Lock locking nuts for a safer and more reliable hold. With their innovative design, these nuts get tighter under shock and vibration, providing extra protection in high-stress areas and safety-critical applications. Their interlocking cams create a secure, free-spinning assembly that can withstand forces that cause other locknuts to come loose, giving you peace of mind that your bolted connections will stay put when you need them most. Available in different sizes and compatible with Grade 5 (Class 8.8), grade 8 (Class 10.9), and stronger bolts, Disc-Lock locking nuts are perfect for a wide range of industries and applications, including automotive, construction, aerospace, and more. Upgrade your bolted connections with Disc-Lock locking nuts for a safer, more secure hold.

Top product features:

  • Tightens under shock and vibration, ensuring secure connections
  • Designed for high-stress areas and safety-critical applications
  • Compatible with Grade 5 (Class 8.8), grade 8 (Class 10.9), and stronger bolts

Top product applications:

  • Aerospace industry for secure fastening in critical systems
  • Automotive manufacturing for high-stress bolt connections
  • Construction projects for durable and reliable assembly

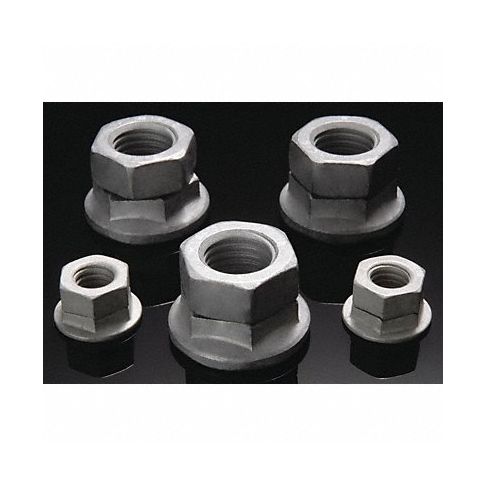

Disc-Lock™ locking nuts get tighter under shock and vibration—forces that cause other locknuts to come loose. The proprietary design is great for high-stress, vibration-sensitive areas and in safety-critical applications. Interlocking cams form the free-spinning, 1-pc. locking nut assembly. The top threaded hexagon nut has cams underneath and a pilot that retains the washer. The bottom hex flange washer has a smooth bearing surface and cams on top. Under vibration and shock, the cams try to rise against each other, locking the assembly to maintain the bolted clamp load and protect joint integrity. Easily installed and removed with standard equipment—they're reusable. Can be used with Grade 5 (Class 8.8), grade 8 (Class 10.9), and stronger bolts.

Technical Specifications

  • Item Lock Nut
  • Nut Style Wedge Lock Nut
  • System of Measurement Metric
  • Basic Material Steel
  • Fastener Finish Zinc Plated
  • Fastener Thread Direction Right Hand
  • Fastener Thread Type Metric
  • Dia./Thread Size M10-1.50
  • Material Grade Class 10
  • Width Across Flats 15.0 mm
  • Nut Height 11.0 mm
  • Flange Dia. 20.0 mm

Manufacturer Details

  • Manufacturer: Disc-Lock
  • Condensed Mfg Number: NMC20301565
  • MPN: NMC 203-01-565

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: TW
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 7318220000
  • GDS Category Name: Lock Nuts with Integrated Washer
  • GDS Family Name: Nuts
  • GDS Segment Name: Fasteners
  • UNSPSC: 31161716
  • UNSPSC Class ID: 17
  • UNSPSC Commodity Name: Nuts
  • UNSPSC Commodity ID: 16
  • UNSPSC Commodity Name: Locknuts
  • UNSPSC Family ID: 16
  • UNSPSC Family Name: Hardware
  • UNSPSC Segment ID: 31
  • UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

  • Not For Sale In: HI AK PR
Related ASINs: B07PXMQ6DN
