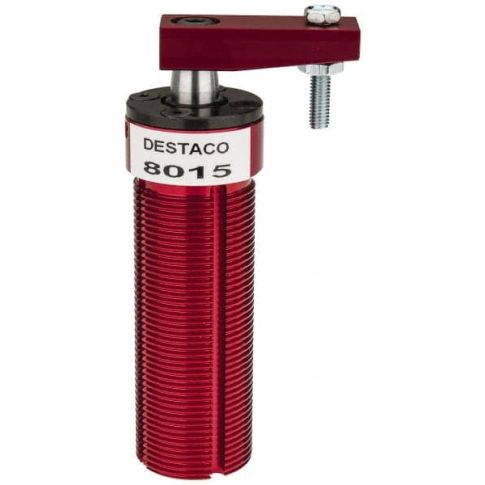

main product photo

Air Swing Clamp: 24.73 lb Clamp Force, Right Hand Swing, 0.85" Stroke, Single Acting MPN:8015

Discount: See in Cart
Free Shipping
In Stock
Brand: De-Sta-Co
Part #: 8015
UPC: 00697437580153
SKU
310-89305460
Regular Price $479.51 Special Price $435.29
Add to Wish List Add to Compare
Air Swing Clamp: 24.73 lb Clamp Force, Right Hand Swing, 0.85" Stroke, Single Acting
Air Swing Clamp: 24.73 lb Clamp Force, Right Hand Swing, 0.85" Stroke, Single Acting 10-32 Port, 1-1/8-16 Body Thread, 2.8701" Body Length, 130 Max psi

Product Information

  • : 8015
  • Action Type: Single
  • Body Diameter (Decimal Inch): 1.2520
  • Body Diameter (mm): 31.80
  • Body Length: 72.90
  • Body Length (Decimal Inch): 2.8701
  • Body Thread Size: 1-1/8-16
  • Body Width/Diameter (Decimal Inch): 1.2520
  • Body Width/Diameter (mm): 31.80
  • Clamp Arm Compatibility: 801528 Standard Clamping Arm; 801529 Standard Clamping Arm; 801530 T-Style Clamping Arm; 801531 T-Style Clamping Arm; 801532 Blank Clamping Arm
  • Clamping Force (Lb.): 24.73
  • Clamping Force (N): 110.00
  • Features: Threaded Body Mounted in a Tapped Hole
  • Includes: Clamping Arm; Spindle
  • Maximum Operating Pressure (Psi): 130
  • Minimum Operating Pressure (Bar): 3.00
  • Mount Type: Threaded Body
  • No Description: 1.2500
  • Operating Volume (cc): 4.10 (Clamp)
  • Operation Type: Air
  • Overall Open Length (Decimal Inch): 4.7500
  • Port Size: 10-32
  • Rod Diameter (Decimal Inch): 0.4400
  • Rod Diameter (mm): 11.18
  • Swing Direction: Right Hand
  • Tapped Depth: 0.3100
  • Total Stroke Distance (Decimal Inch): 0.8500
  • Total Stroke Distance (mm): 21.59
  • Vertical Stroke Distance (Decimal Inch): 0.3819
  • Vertical Stroke Distance (mm): 9.70

Additional Information

  • Hazardous Materials: No, oK to Ship Via Air
  • Material Safety Data Sheet (MSDS) Required: No
  • Country of Origin: US, United States
  • TAA Compliant: Yes
  • UNSPSC: 23153000
  • UPC: 697437580153
  • CA Restricted (Prop 65): Unknown
  • Package Weight: 1.00
  • Prohibited States: AK,HI,PR
