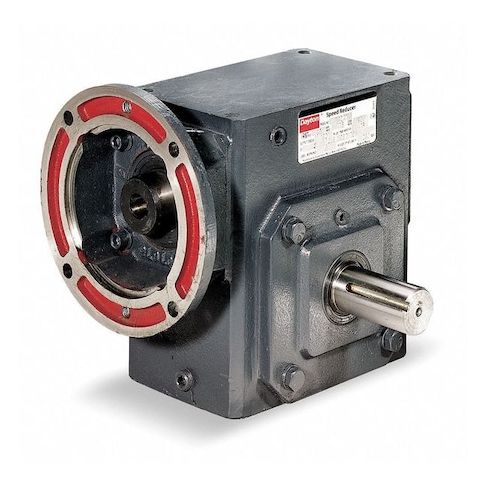

Speed Reducer, C-Face, 56C, 15:1 MPN:4RN76
Speed Reducer, C-Face, 56C, 15:1
The Dayton Speed Reducer is a reliable and efficient solution for applications requiring reduced speed and increased torque. Designed for use in a variety of settings, this unit is ideal for applications such as packaging machinery, conveyor systems, and material handling equipment. With a maximum output speed of 117 RPM and a gear ratio of 15:1, it provides a precise and controlled speed reduction. The unit's rugged construction and durable materials ensure long-lasting performance, while its compact design makes it easy to integrate into existing systems. Perfect for applications requiring high torque and low speed.
Top product features:
- C-Face input connection allows for easy installation and removal of the speed reducer
- Worm gear type provides a high gear ratio in a compact design
- Maximum output speed of 117 RPM allows for precise control and slow motion applications
Top product applications:
- Speed Reducer
- Worm gear type speed reducers are commonly used in applications where high torque and low speed are required
- Gear reducers are used in a wide range of applications including conveyor systems, packaging equipment, and textile machinery
Speed Reducer, Input Connection Type C-Face, Gear Type Worm, Output Shaft Type Keyed, Maximum Output Speed 117 RPM, Motor Frame Designation 56C, Worm Center Distance 1.33 in, Gear Ratio 15:1, Rotation CW/CCW, Maximum Input Horsepower 0.5 hp, Maximum Output Torque 203 in-lb, Overhung Load Capacity 275 lb, Mounting Orientation Any Angle, Housing Material Cast Iron, Application Speed Reducer, Bearing Type Ball, Tapered Roller, Gear Material Hardened Steel, Manganese Bronze
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.90
- Package Width: 9.20
- Package Height: 7.20
- Package Weight: 16.00
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Product info last updated on February 1, 2026 1:09am UTC
Category: Bearings, V-belts and Power Transmission Equipment
