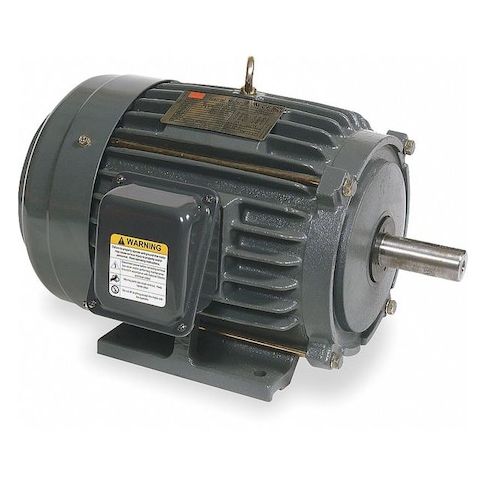

Three-Phase General Purpose Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 3535 Nameplate RPM MPN:194158.00
Three-Phase General Purpose Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 3535 Nameplate RPM
This 20 HP three-phase general purpose motor from Dayton is designed for heavy-duty applications requiring high reliability and efficiency. With a nameplate RPM of 3535 and a nominal efficiency of 91%, this motor is ideal for continuous duty operations in various industries such as manufacturing, oil and gas, and food processing. The totally enclosed fan cooled design ensures optimal performance in harsh environments, while the cast iron frame and ball bearings provide durability and long motor life. Suitable for use in applications such as pumps, fans, and conveyor systems, this motor meets CE, CSA, and UL standards for added assurance.
Top product features:
- Three-Phase AC Voltage Capability
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Manufacturing plants
- Oil and gas production facilities
- Pumping stations
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 3535, Frame 256T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 47.3/23.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 22.00
- Package Height: 18.00
- Package Weight: 369.00
Product info last updated on January 30, 2026 10:26pm UTC
Category: Motors
