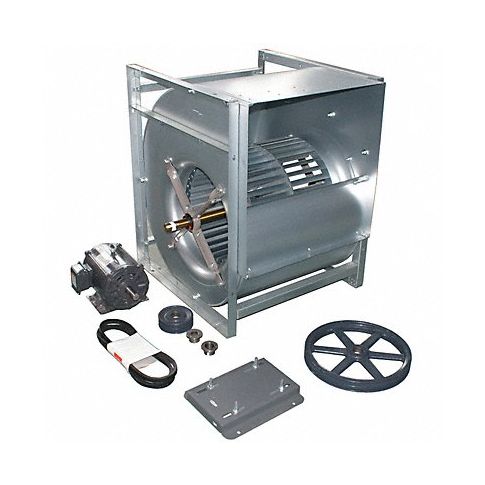

Blower 20 In Fwd Curve MPN:7K413

Double Inlet Full-Width Forward Curve Belt-Drive Blowers

• 4-position mounting Max. inlet air temp.: 150°F Max. ambient temp.: 104°F
High-volume, low velocity blowers have steel wheels and cast-iron, regreasable pillow block ball bearings. Drive package components are packed separately. Meet full Class 1 performance for use in heating, ventilation, exhausting, cooling, humidifying, drying, and similar applications.

Technical Specifications

• Item Blower
• Type With Drive Package
• Wheel Dia. (In.) 20
• CFM @ 0.250-In. SP 8650
• CFM @ 0.375-In. SP 7400
• CFM @ 0.500-In. SP 5650
• Max. Inlet Temp. (Deg. F) 150
• Max. Ambient Temp. (F) 104
• Voltage 208-230/460
• Hz 60
• Phase 3
• Full Load Amps 6.1-5.5/2.8
• Motor HP 2
• Motor RPM 1735
• Motor Type 3-Phase
• Motor Enclosure Open Dripproof
• Motor Frame 145T
• Motor Insulation Class F
• Bearing Type Ball
• Shaft Dia. (In.) 7/8
• Height (In.) 38
• Width (In.) 36-3/4
• Depth (In.) 32-3/4
• Inlet Dia. (In.) 16-1/4
• Outlet Width (In.) 24-3/4
• Outlet Height (In.) 24-3/4
• Wheel Width (In.) 20
• Wheel Material Steel
• Blower RPM 400
• Housing Material Galvinized Steel
• Housing Finish None
• Assembled/Unassembled Unassembled

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 7K413
• MPN: 7K413

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ZZ
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414599080
• GDS Category Name: Centrifugal Blowers with Motor
• GDS Family Name: Industrial Blowers and Accessories
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Air circulation and parts and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Blowers
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
