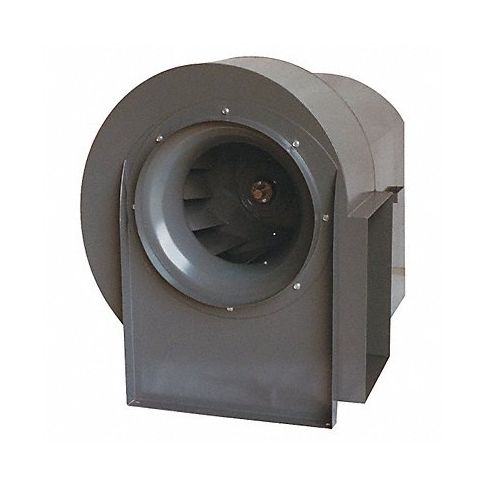

Blower W/ Drive Pkg 208-230/460 Volts MPN:7K366

Backward Incline Belt-Drive Blowers

• Nonoverloading, dynamically balanced wheels Sizes 10-1/2" to 24-1/2" feature flat blade wheel; sizes 27" to 36-1/2" have airfoil wheel Both wheel styles provide full Class 1 performance range Welded steel housing Gray baked-on epoxy finish Max. inlet air temp.: 250°F Max. ambient: 104°F Pillow block ball bearings
Motor cannot be overloaded at any given rpm and horsepower regardless of static pressure applied to the system. Clockwise rotation viewed from drive side. Blowers are shipped in bottom horizontal discharge position and can be changed in the field to 7 additional standard discharge positions. Sizes 10-1/2" to 20" have variable-pitch sheaves; larger sizes have fixed sheave drive. Include weatherproof drive cover. Drive packages are packed separately.
Note: Review OSHA Codes. OSHA complying guards are required when fan blades are exposed and within reach of personnel. The A weighted sound ratings shown have been calculated per AMCA Standard 301. Values shown for blowers are for (inlet Lwi) sound levels for: Installation Type B: free inlet, ducted outlet. Ratings do not include the effects of duct end correction.

Technical Specifications

• Item Blower
• Type Backward Incline Belt Drive With Drive Package
• Wheel Dia. (In.) 15
• CFM @ 0.250-In. SP 3450
• CFM @ 0.500-In. SP 3302
• CFM @ 0.750-In. SP 3145
• CFM @ 1.000-In. SP 2980
• CFM @ 1.500-In. SP 2599
• dBA @ 5 Feet 68
• Max. Inlet Temp. (Deg. F) 250
• Max. Ambient Temp. (F) 104
• Voltage 208-230/460
• Hz 60
• Phase Three
• Full Load Amps 3.1-2.8/1.4
• Motor HP 1
• Max. BHP 1.00
• Motor RPM 1740
• Motor Type 3-Phase
• Motor Enclosure Totally Enclosed Fan Cooled
• Motor Frame 143T
• Bearing Type Ball
• Shaft Dia. (In.) 1
• Height (In.) 30-1/4
• Width (In.) 26-1/2
• Depth (In.) 35-3/8
• Inlet Dia. (In.) 16-1/8
• Outlet Height (In.) 16-1/4
• Outlet Width (In.) 11-3/4
• Wheel Width (In.) 7-11/16
• Wheel Material Steel
• Blower RPM 1575
• Rotation CW
• Housing Material Steel
• Housing Finish Gray Baked Polyester Epoxy
• Assembled/Unassembled Unassembled
• Includes Epoxy Coated Steel Weather Proof Drive Cover
