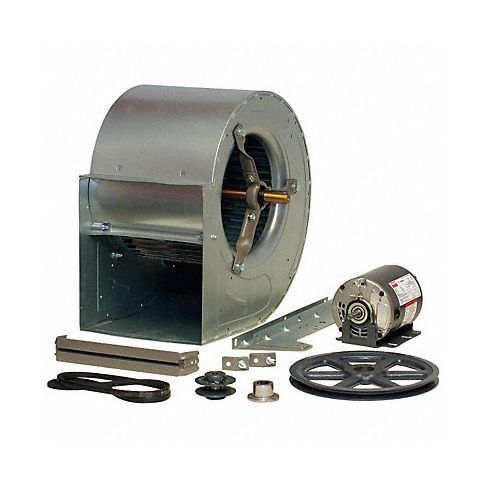

Blower w/Dr Pkg 17-13/16 In 208-230/460V MPN:7J511

This forward curve belt-drive blower is prelubricated, has sealed ball bearings with rubber isolators and a dynamically balanced forward curved wheel. It features a precision-ground shafting with both keyways and flats for a wide range of drives and HP, and also has die-stamped steel housing with mounting supports. A variable-pitch motor sheave is provided when ordered, complete with drive package for speed adjustment.

Technical Specifications

• Item Blower with Motor and Drive Package
• Type Double Inlet Forward Curve
• Drive Type Belt
• Wheel Dia. 17-13/16 in
• Wheel Width (In.) 17-1/2
• CFM Range 8405 @ 1.250-In SP
• CFM @ 0.125-In. SP #
• CFM @ 0.250-In. SP #
• CFM @ 0.375-In. SP #
• CFM @ 0.500-In. SP #
• CFM @ 0.625-In. SP #
• CFM @ 0.750-In. SP #
• CFM @ 1.000-In. SP #
• CFM @ 1.250-In. SP 8405
• Max. Inlet Temp. (Deg. F) 150
• Max. Ambient Temp. (F) 104
• Voltage 208-230/460
• Hz 60
• Phase 3
• Full Load Amps 14.5-13.1/6.5
• Motor RPM 1740
• Motor HP 5
• Bearing Type Ball
• Motor Type 3-Phase
• Motor Enclosure TEFC
• Blower RPM 703
• Housing Height (In.) 30-11/16
• Housing Width (In.) 21-7/8
• Housing Depth (In.) 27
• Discharge Height 11-3/4 in
• Discharge Width 21-7/8 in
• Mounting Multiposition
• Housing Material Steel
• Housing Finish Gray
• Speed Controllable No
• Assembled/Unassembled Unassembled
• Includes Motor Mounting Bracket, Isolation Grommets and Mounting Hardware
• Footnotes # Motor Overload Condition

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 7J511
• MPN: 7J511

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ZZ
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414901080
• GDS Category Name: Centrifugal Blowers with Motor
• GDS Family Name: Industrial Blowers and Accessories
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Air circulation and parts and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Blowers
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
