Blower w/ Dr Pkg 15-1/16 In 208-230/460V MPN:7J489
SKU
226-CXO-7J489
Blower w/ Dr Pkg 15-1/16 In 208-230/460V
Customers seeking powerful air movement capabilities will find the Blower w/ Dr Pkg 15-1/16 In 208-230/460V an optimal choice due to its high capacity airflow at 30,000 cfm and three stage filtration systems perfect for cleaning or cooling operations. It is ideal in industries such as HVAC and refrigeration that require precision manufacturing for robust applications with customizable options in agriculture settings allowing it to withstand harsh weather conditions while being cost-effective due to its energy efficient power consumption.

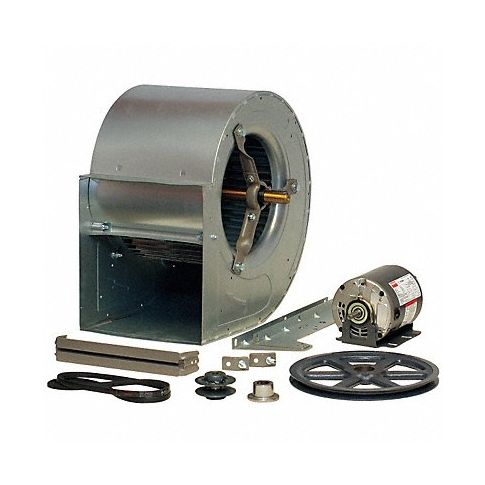

This forward curve belt-drive blower is prelubricated, has sealed ball bearings with rubber isolators and a dynamically balanced forward curved wheel. It features a precision-ground shafting with both keyways and flats for a wide range of drives and HP, and also has die-stamped steel housing with mounting supports. A variable-pitch motor sheave is provided when ordered, complete with drive package for speed adjustment.
Technical Specifications
- Item Blower with Motor and Drive Package
- Type Double Inlet Forward Curve
- Drive Type Belt
- Wheel Dia. 15-1/16 in
- Wheel Width (In.) 14-7/8
- CFM Range 4500 to 3950 @ 0.375-In SP to 0.500-In SP
- CFM @ 0.125-In. SP #
- CFM @ 0.250-In. SP #
- CFM @ 0.375-In. SP 4500
- CFM @ 0.500-In. SP 3950
- Max. Inlet Temp. (Deg. F) 150
- Max. Ambient Temp. (F) 104
- Voltage 208-230/460
- Hz 50/60
- Phase 3
- Full Load Amps 3.2-3.2/1.6
- Motor RPM 1760
- Motor HP 1
- Bearing Type Ball
- Motor Type 3-Phase
- Motor Enclosure TEFC
- Blower RPM 523
- Housing Height (In.) 25-3/4
- Housing Width (In.) 18-5/8
- Housing Depth (In.) 22-11/16
- Discharge Height 9-11/16 in
- Discharge Width 18-5/8 in
- Mounting Multiposition
- Housing Material Steel
- Housing Finish Gray
- Speed Controllable No
- Assembled/Unassembled Unassembled
- Includes Motor Mounting Bracket, Isolation Grommets and Mounting Hardware
- Footnotes # Motor Overload Condition
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 7J489
- MPN: 7J489
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414901080
- GDS Category Name: Centrifugal Blowers with Motor
- GDS Family Name: Industrial Blowers and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Blowers
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
