Blower w/ Dr Pkg 10-1/4 In 208-230/460V MPN:7J425
Blower w/ Dr Pkg 10-1/4 In 208-230/460V
The Blower w/ Dr Pkg 10-1/4 In 208-230/460V is ideal for heavy-duty industrial use, offering versatile and reliable air circulation solutions. With a range of 3500 to 9800 CFM in adjustable airflow control, this blower can be customized according to your needs. Furthermore, its ability to handle loads up to 276 pounds ensures sturdy performance in demanding environments, while the choice between voltage options: 208-230 V or 460 V allows you to pick what works best for your setup. Boasting both efficiency and durability; the Blower w/ Dr Pkg 10-1/4 In 208-230/460V is an excellent choice for any industrial setting.

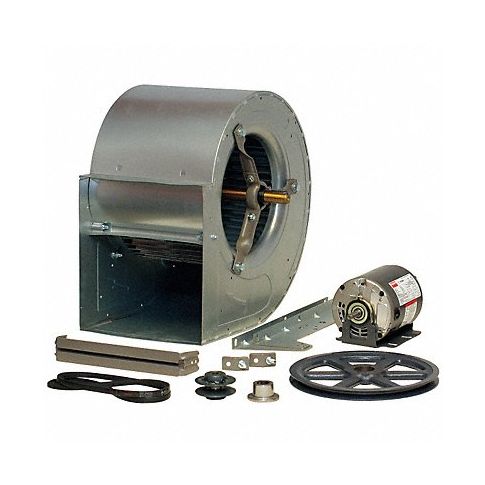

This forward curve belt-drive blower is prelubricated, has sealed ball bearings with rubber isolators and a dynamically balanced forward curved wheel. It features a precision-ground shafting with both keyways and flats for a wide range of drives and HP, and also has die-stamped steel housing with mounting supports. A variable-pitch motor sheave is provided when ordered, complete with drive package for speed adjustment.
Technical Specifications
- Item Blower with Motor and Drive Package
- Type Double Inlet Forward Curve
- Drive Type Belt
- Wheel Dia. 10 1/4 in
- Wheel Width (In.) 9-3/16
- CFM Range 3320 to 2620 @ 0.500-In SP to 1.500-In SP
- CFM @ 0.125-In. SP #
- CFM @ 0.250-In. SP #
- CFM @ 0.375-In. SP #
- CFM @ 0.500-In. SP 3320
- CFM @ 0.625-In. SP 3280
- CFM @ 0.750-In. SP 3220
- CFM @ 1.000-In. SP 3100
- CFM @ 1.250-In. SP 2910
- CFM @ 1.500-In. SP 2620
- Max. Inlet Temp. (Deg. F) 150
- Max. Ambient Temp. (F) 104
- Voltage 208-230/460
- Hz 50/60
- Phase 3
- Full Load Amps 6.0-5.8/2.9
- Motor RPM 1745
- Motor HP 2
- Bearing Type Ball
- Motor Type 3-Phase
- Motor Enclosure TEFC
- Blower RPM 1406
- Housing Height (In.) 16-15/16
- Housing Width (In.) 11-13/16
- Housing Depth (In.) 14-15/16
- Discharge Height 6-5/16 in
- Discharge Width 11-13/16 in
- Mounting Multiposition
- Housing Material Steel
- Housing Finish Gray
- Speed Controllable No
- Assembled/Unassembled Unassembled
- Includes Motor Mounting Bracket, Isolation Grommets and Mounting Hardware
- Footnotes # Motor Overload Condition
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 7J425
- MPN: 7J425
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414901080
- GDS Category Name: Centrifugal Blowers with Motor
- GDS Family Name: Industrial Blowers and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Blowers
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
