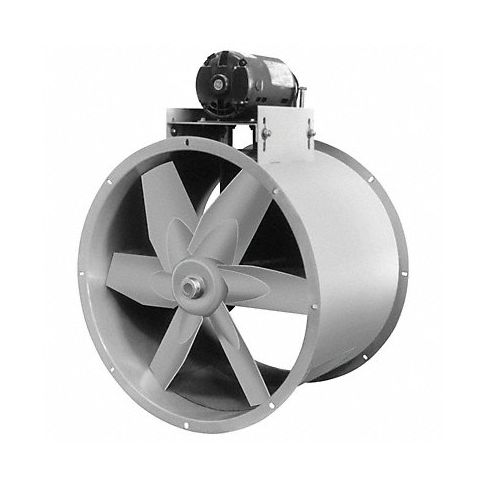

Steel 33.6 Dia 24 L 46.6 H Tubeaxial Fan MPN:7J366
Steel axial fans provide customizable options for powerful airflow handling in versatile HVAC or refrigeration systems that cater to industries requiring reliability, durability, and optimal indoor air quality optimization. With high-quality materials built to last, the steel axial fan excels in diverse applications such as agricultural facilities, manufacturing plants, and warehouses. The steel axial fan offers a cost-effective solution for reliable equipment with efficiency, versatility, customizable options, reliability, durability, and an ideal solution in Tubeaxial Fans and Accessories applications including HVAC and refrigeration systems. With its key characteristics that offer versatility, customizable options, high-quality materials, efficiency, reliability, durability, and an ideal solution across various HVAC and refrigeration systems such as agricultural facilities, manufacturing plants, and warehouses, industries requiring optimization of indoor air quality benefit from the steel axial fan's ability to deliver unbeatable value for money. In addition, the steel axial fan finds its importance in Tubeaxial Fans with Motor applications, offering reliable, durable, and cost-effective solutions for versatile HVAC or refrigeration systems requiring optimization of indoor air quality, suitable across diverse industries such as agricultural facilities, manufacturing plants, and warehouses.
Technical Specifications
- Item Tubeaxial Fan with Motor and Drive Package
- Drive Type Belt-Drive
- Blade Dia. 30 in
- CFM @ 0.000-In. SP 10955
- CFM @ 0.125-In. SP 10415
- CFM @ 0.250-In. SP 9815
- CFM @ 0.375-In. SP 8359
- Sones @ 0.250-In. SP @ 5 Ft. 31
- Motor HP 1-1/2
- Max. BHP 1.4
- Fan RPM 1030
- Motor Enclosure Totally Enclosed Fan Cooled
- Phase 1
- Voltage 115/208-230
- Max. Motor Height 10 in
- Shaft Dia. 1-3/16 in
- Number of Blades 6
- Full Load Amps 15.2/8.2-7.6
- Motor Type Capacitor Start, Capacitor Run
- Max. Inlet Temp. 500 Degrees F for 4 hr, 1000 Degrees F for 15 min
- Max. Ambient Temp. 200 Degrees F
- Bearing Type Ball
- Mounting Position Vertical/Horizontal
- Housing Material Steel
- Housing Finish Baked Enamel
- Blade Material Steel
- Hz 60
- Motor RPM 1725
- Height 46-5/8 in
- Width 33-41/64 in
- Max. Depth 24 in
- Housing Dia. w/Mtg. Flange 33-5/8 in
- Housing Dia. w/o Mtg. Flange 30-1/2 in
- Inlet Dia. 30 5/8 in
- Outlet Dia. 30 5/8 in
- Assembled/Unassembled Unassembled
- Bolt Circle Dia. 5/16 in
- Standards AMCA, cULus
- Includes Belt Guard
- Dimension A 33-5/8 in
- Dimension B 19-1/4 in
- Dimension C 30-1/2 in
- Dimension D 24 in
- Dimension E 5/16 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 7J366
- MPN: 7J366
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414510010
- GDS Category Name: Tubeaxial Fans with Motor
- GDS Family Name: Tubeaxial Fans and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101604
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Fans
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on January 25, 2024 10:14am UTC Category: Tubeaxial Fans and Accessories
