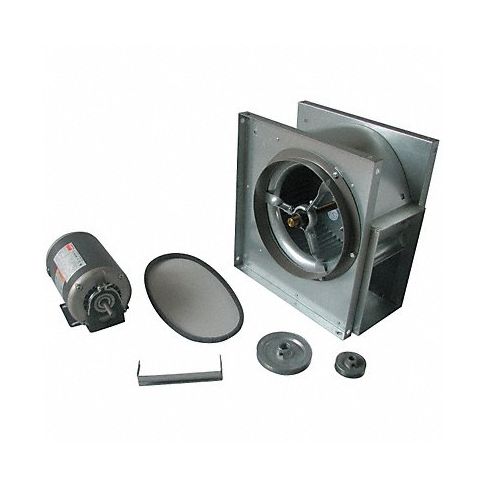

Blower 22 In MPN:7HT01

Single-Inlet Forward-Curve Belt-Drive Blowers

• Housing can be rotated to any of 4 standard discharge positions Max. inlet air temp.: 150°F Max. ambient: 104°F
Single inlet for quiet, efficient performance in general ventilation, exhausting, air conditioning, and industrial air-moving applications. Precision, balanced, forward-curved steel wheels. Die-stamped steel housing. Single-phase motors have automatic reset thermal protection. Drive package components are packed separately.

Technical Specifications

• Item Blower
• Type Belt Drive, Single Inlet Forward Curve With Drive Package
• Wheel Dia. (In.) 22-1/8
• CFM @ 0.125-In. SP 7680
• CFM @ 0.250-In. SP 7070
• CFM @ 0.500-In. SP 5500
• CFM @ 0.750-In. SP 3540
• Max. Inlet Temp. (Deg. F) 150
• Max. Ambient Temp. (F) 104
• Voltage 230/460
• Hz 60
• Phase 3
• Full Load Amps 5.8-5.3/2.6
• Motor HP 2
• Motor RPM 1735
• Motor Type 3-Phase
• Motor Enclosure Open Dripproof
• Motor Insulation Class F
• Bearing Type Ball
• Shaft Dia. (In.) 1-3/16
• Housing Height (In.) 39-7/16
• Housing Width (In.) 17-1/8
• Housing Length (In.) 35-1/8
• Inlet Dia. (In.) 22-5/16
• Discharge Width (In.) 17-1/8
• Discharge Height (In.) 27-1/4
• Wheel Width (In.) 10-7/8
• Wheel Material Steel
• Blower RPM 390
• Max. Blower RPM 600
• Rotation CCW Viewing Drive Side
• Mounting Position Blower Shaft Horizontal
• Housing Material Galvanized Steel
• Housing Finish None
• Assembled/Unassembled Unassembled

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 7HT01
• MPN: 7HT01

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ZZ
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414599080
• GDS Category Name: Centrifugal Blowers with Motor
• GDS Family Name: Industrial Blowers and Accessories
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Air circulation and parts and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Blowers
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
