Blower w/ Dr Pkg 10-1/4 In 208-230/460V MPN:7HN05
SKU
226-CXO-7HN05

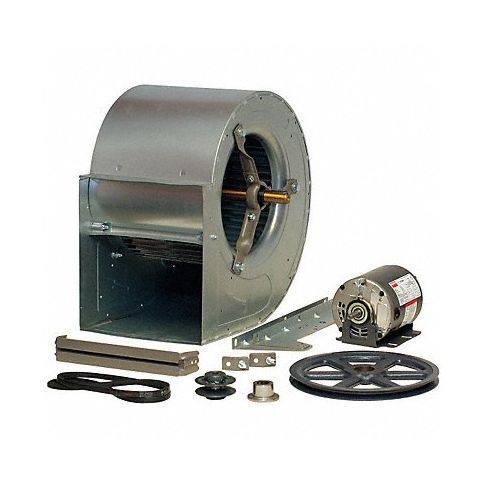

Blower w/ Dr Pkg 10-1/4 In 208-230/460V
The Blower w/ Dr Pkg 10-1/4 In 208-230/460V is a powerful blower designed for use in various industrial settings that require efficient air circulation. This product features adjustable air volume control ranging from 3500 to 9800 CFM, with voltage options of either 208-230 V or 460 V ensuring its compatibility across a broad range of power sources. With a 1/2 inch thickness and ability to handle loads up to 276 pounds, this blower guarantees both efficiency and durability. Ideal for various industries including manufacturing, agriculture and construction; the Blower w/ Dr Pkg 10-1/4 In 208-230/460V is a reliable solution for air circulation and ventilation needs.
This forward curve belt-drive blower is prelubricated, has sealed ball bearings with rubber isolators and a dynamically balanced forward curved wheel. It features a precision-ground shafting with both keyways and flats for a wide range of drives and HP, and also has die-stamped steel housing with mounting supports. A variable-pitch motor sheave is provided when ordered, complete with drive package for speed adjustment.
Technical Specifications
- Item Blower with Motor and Drive Package
- Type Double Inlet Forward Curve
- Drive Type Belt
- Wheel Dia. 10 1/4 in
- Wheel Width (In.) 9-3/16
- CFM Range 2070 to 1800 @ 0.500-In SP to 0.750-In SP
- CFM @ 0.125-In. SP #
- CFM @ 0.250-In. SP #
- CFM @ 0.375-In. SP #
- CFM @ 0.500-In. SP 2070
- CFM @ 0.625-In. SP 1920
- CFM @ 0.750-In. SP 1800
- Max. Inlet Temp. (Deg. F) 150
- Max. Ambient Temp. (F) 104
- Voltage 208-230/460
- Hz 60
- Phase 3
- Full Load Amps 2.1-2.2/1.1
- Speed 1
- Motor RPM 1725
- Motor HP 1/2
- Bearing Type Double Shielded Ball
- Motor Type 3-Phase
- Motor Enclosure Open Dripproof
- Blower RPM 959
- Housing Height (In.) 16-15/16
- Housing Width (In.) 11-13/16
- Housing Depth (In.) 14-15/16
- Discharge Height 6-5/16 in
- Discharge Width 11-13/16 in
- Mounting Multipostion
- Housing Material Galvanized Steel
- Housing Finish None
- Speed Controllable No
- Assembled/Unassembled Unassembled
- Includes Motor Mounting Bracket, Isolation Grommets and Mounting Hardware
- Footnotes # Motor Overload Condition
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 7HN05
- MPN: 7HN05
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414901080
- GDS Category Name: Centrifugal Blowers with Motor
- GDS Family Name: Industrial Blowers and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Blowers
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
