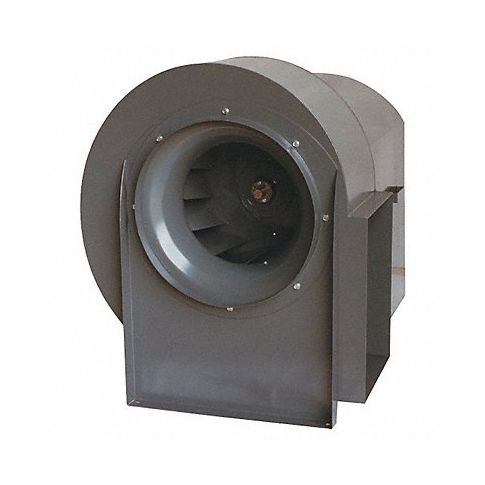

Blower 24 1/2 In MPN:7H180
Blower 24 1/2 In
Blower 24 1/2 offers a versatile and powerful air movement solution ideal for HVAC and refrigeration professionals who require consistent performance. Its aluminum construction provides durability and longevity while the lightweight design simplifies installation, maintenance, and portability. With an operating range of -10 degrees F to 140 degrees F (-23 degree C to 60 degree C) this blower ensures efficient air circulation in various settings, making it a preferred choice for professionals working in HVAC and refrigeration industries.
Backward Incline Belt-Drive Blowers • Nonoverloading, dynamically balanced wheels Sizes 10-1/2" to 24-1/2" feature flat blade wheel; sizes 27" to 36-1/2" have airfoil wheel Both wheel styles provide full Class 1 performance range Welded steel housing Gray baked-on epoxy finish Max. inlet air temp.: 250°F Max. ambient: 104°F Pillow block ball bearingsMotor cannot be overloaded at any given rpm and horsepower regardless of static pressure applied to the system. Clockwise rotation viewed from drive side. Blowers are shipped in bottom horizontal discharge position and can be changed in the field to 7 additional standard discharge positions. Sizes 10-1/2" to 20" have variable-pitch sheaves; larger sizes have fixed sheave drive. Include weatherproof drive cover. Drive packages are packed separately.Note: Review OSHA Codes. OSHA complying guards are required when fan blades are exposed and within reach of personnel. The A weighted sound ratings shown have been calculated per AMCA Standard 301. Values shown for blowers are for (inlet Lwi) sound levels for: Installation Type B: free inlet, ducted outlet. Ratings do not include the effects of duct end correction.
Technical Specifications
- Item Blower
- Type Backward Incline Belt Drive With Drive Package
- Wheel Dia. (In.) 24-1/2
- CFM @ 0.250-In. SP 10,987
- CFM @ 0.500-In. SP 10,735
- CFM @ 0.750-In. SP 10,470
- CFM @ 1.000-In. SP 10,190
- CFM @ 1.500-In. SP 9573
- CFM @ 2.000-In. SP 8844
- CFM @ 2.500-In. SP 7911
- CFM @ 3.000-In. SP 6408
- dBA @ 5 Feet 74
- Max. Inlet Temp. (Deg. F) 250
- Max. Ambient Temp. (F) 104
- Voltage 230/460
- Hz 60
- Phase 3
- Full Load Amps 13.0/6.5
- Motor HP 5
- Max. BHP 4.92
- Motor RPM 1755
- Motor Type Three Phase
- Motor Enclosure Open Dripproof
- Motor Frame 184T
- Bearing Type Ball
- Shaft Dia. (In.) 1-7/16
- Height (In.) 47-7/8
- Width (In.) 42-7/8
- Depth (In.) 47-3/8
- Inlet Dia. (In.) 26-3/8
- Outlet Height (In.) 26-1/4
- Outlet Width (In.) 19-1/4
- Wheel Width (In.) 12
- Wheel Material Steel
- Blower RPM 1180
- Rotation CW
- Housing Material Steel
- Housing Finish Gray Baked Polyester Epoxy
- Assembled/Unassembled Unassembled
- Includes Epoxy Coated Steel Weather Proof Drive Cover
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 7H180
- MPN: 7H180
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414599080
- GDS Category Name: Centrifugal Blowers with Motor
- GDS Family Name: Industrial Blowers and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101601
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Blowers
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
