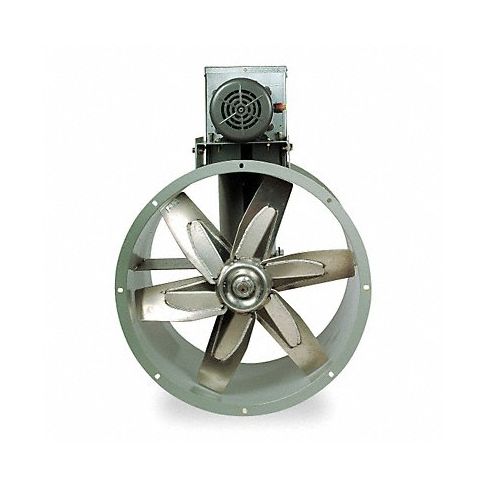

Steel 38 Dia 29 L 51 H Tubeaxial Fan MPN:7F856

Belt-Drive Tubeaxial Fans

• Mount: vertical or horizontal Permanently lubricated ball bearings Max. inlet air temp.: 200°F Max. ambient: 104°F Precision-balanced, spark-resistant aluminum blades Belt guards AMCA Type B spark-resistant propellers (99-0401-86) Optional companion flanges are sold in pairs
Streamlined belt tunnel ventilates the drive compartment with air from outside the fan. Steel housing is iron phosphate-processed for rust protection; baked enamel paint finish. Factory installed cast-iron sheave is assembled on fan shaft. Motors and belts are packed separately when complete fan with drive package is ordered.
Note: These fans cannot be used if the environment surrounding them is not always free of flammable gases, vapors, or liquids; combustible dust; or ignitable fibers or flyings. Installation must comply with all local and national safety codes including the National Electrical Code (NEC) and the National Fire Protection Act (NFPA). OSHA complying guards are required when fan is installed within 8 ft. of floor or working level, or within reach of personnel. Review OSHA Codes and UL Standards.

Technical Specifications

• Item Tubeaxial Fan with Motor and Drive Package
• Drive Type Belt-Drive
• Blade Dia. 34 in
• CFM @ 0.000-In. SP 19,290
• CFM @ 0.125-In. SP 18,800
• CFM @ 0.250-In. SP 18,280
• CFM @ 0.500-In. SP 17,150
• CFM @ 0.750-In. SP 15,880
• CFM @ 1.000-In. SP 14,445
• CFM @ 1.250-In. SP 12,180
• Sones @ 0.250-In. SP @ 5 Ft. 61
• Motor HP 5
• Max. BHP 4.36
• Fan RPM 1251
• Motor Enclosure Hazardous Location, Totally Enclosed Fan Cooled
• Phase 3
• Voltage 230/460
• Max. Motor Height 10 in
• Shaft Dia. 1-3/16 in
• Number of Blades 6
• Full Load Amps 12.8/6.4
• Motor Type 3-Phase
• Max. Inlet Temp. 200 Degrees F
• Max. Ambient Temp. 104 Degrees F
• Bearing Type Ball
• Mounting Position Vertical/Horizontal
• Housing Material Steel
• Housing Finish Baked Enamel
• Blade Material Spark Resistant Aluminum
• Hz 60
• Motor RPM 1750
• Height 50-3/4 in
• Width 37-3/4 in
• Max. Depth 29 in
• Housing Dia. w/Mtg. Flange 37-3/4 in
• Housing Dia. w/o Mtg. Flange 34-1/2 in
• Inlet Dia. 34 5/8 in
• Outlet Dia. 34 5/8 in
• Assembled/Unassembled Unassembled
• Bolt Circle Dia. 36-1/4 in
• Replacement Fan Blade Stock No. 3C419
• Companion Flange Stock No. 3C441
• Standards AMCA
• Includes Belt guard
• Dimension A 37-3/4 in
• Dimension B 21-3/8 in
• Dimension C 34-1/2 in
• Dimension D 29 in
• Dimension E 7/16 in
