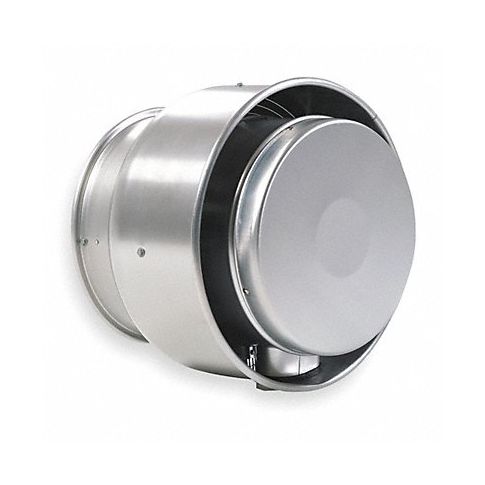

Aluminum 25 Dia 25 H Roof Fan w.Motor MPN:7DF69

The upblast exhaust ventilator is designed to exhaust contaminated air from kitchen range hoods in restaurants, schools, commercial, and industrial applications. Its 1-pc. rolled aluminum windband is fully welded to the base, which creates a virtually leakproof seal between the ventilator and the mounting surface. The ventilator is also constructed with internal steel support braces and includes a round mounting plate. The motor, drive frame, and wheel are isolated from the mounting base by independent neoprene studs—preventing metal-to-metal contact and greatly reducing overall noise. The motor compartment is also isolated from the contaminated air stream and is cooled by outside air pulled in through an oversized breather tube by the spinning action of the wheel. Motors, sheaves, and belts are packed separately when unassembled ventilator with drive package is ordered.

• Wall mount applications
• Aluminum, backward-inclined, nonoverloading centrifugal wheel design
• NEMA 1 junction box located in motor enclosure
• Max. inlet air temp.: 300°F
• UL 762 Listed • Restaurant Exhaust Appliances (YZHW)

Technical Specifications

• Item Upblast Ventilator
• Drive Type - Roof Ventilators Belt Drive
• Drive Package With Motor Included Yes
• Base Size - Roof Ventilators 19-3/4 in dia
• Duty Rating - Roof Ventilators Standard
• Voltage - Roof Ventilators 115V AC/208V AC/230V AC
• Motor HP - Roof Ventilators 1/4
• Mounting Location - Roof Ventilators Wall
• Number of Speeds 1
• Wheel Dia. 11 in
• Item - Roof Ventilators Upblast Ventilator
• CFM @ 0.000-In. SP 1260
• CFM @ 0.125-In. SP 1209
• CFM @ 0.250-In. SP 1156
• CFM @ 0.375-In. SP 1100
• CFM @ 0.500-In. SP 1041
• CFM @ 0.750-In. SP 918
• CFM @ 0.875-In. SP 846
• CFM @ 1.000-In. SP 759
• CFM @ 1.250-In. SP 639
• Sones @ 0.125-In. SP @ 5 Ft. 13.8
• Sones @ 0.250-In. SP @ 5 Ft. 13.4
• Sones @ 0.500-In. SP @ 5 Ft. 12.2
• Assembled/Unassembled Unassembled
• Phase 1
• Max. Operating Amps 4.6/2.2-2.3
• Max. BHP 0.25
• RPM 1725
• Shaft Dia. Wheel End 3/4 in
• Bearing Type Sealed Ball
• Housing Material Spun Aluminum
• Wheel Material Aluminum
• Speed Controllable No
• Recommended Damper Size (In.) 12 x 12
• Recommended Damper Stock No. 4HX74
• Includes NEMA 1 Junction Box
• Standards UL 762 Listed Restaurant Exhaust Appliances (YZHW)
• Dimension A 19-3/4 in
• Dimension B 24-7/8 in
• Dimension C 25-1/8 in
• Dimension D 17-3/8 in
• Dimension E 16-7/8 in

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 7DF69
• MPN: 7DF69
