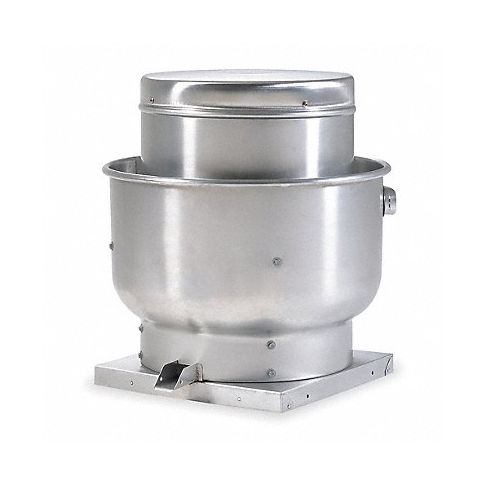

Aluminum 25 Dia 27 H Roof Fan w.Motor MPN:7DF67

The Upblast Ventilator is designed for use in restaurants, schools, and commercial and industrial applications to exhaust contaminated air from kitchen range hoods up and away from the roof. Its 1-pc. rolled aluminum windband is fully welded to the base to create a virtually leakproof seal between the ventilator and the mounting surface. The internal steel support braces and fully rolled windband also increase the rigidity of the ventilator for greater stability during transport and installation.

The motor, drive frame, and wheel are isolated from the mounting base by independent neoprene studs—preventing metal-to-metal contact and greatly reducing overall noise. The motor compartment is also isolated from the contaminated air stream and is cooled by outside air pulled in through an oversized breather tube by the spinning action of the wheel. Motors, sheaves, and belts are packed separately when unassembled ventilator with drive package is ordered.

Drive package consists of appropriate motor, belts, and sheaves to obtain performance listed.

• Aluminum, backward-inclined, nonoverloading centrifugal wheel design
• NEMA 1 junction box located in motor enclosure
• Max. inlet air temp.: 300°F
Air handling quality bearings meet min. L10-100,000 hr.
• Bearings—units without drive package: sealed pillow block up to 16-1/2" wheel dia., regreasable pillow block for 18-1/2" wheel dia. and larger
Bearings—assembled units: sealed pillow block up to 18-1/2" wheel dia., regreasable pillow block for 21-1/4" wheel dia. and larger
• UL 762 Listed Restaurant Exhaust Equipment
• NFPA 96 requires the use of a ventilated roof curb, grease trap, clean-out port, and hinge kit in restaurant applications; NFPA 96 accessories sold separately.

WARNING: Do not use a damper in any kitchen installation.

Technical Specifications

• Item Upblast Ventilator
• Drive Type - Roof Ventilators Belt Drive
• Drive Package With Motor Included Yes
• Duty Rating - Roof Ventilators Standard
• Voltage - Roof Ventilators 115V AC/208V AC/230V AC
• Motor HP - Roof Ventilators 1/4
• Mounting Location - Roof Ventilators Roof
• Number of Speeds 1
• Wheel Dia. 11 in
• Item - Roof Ventilators Upblast Ventilator
• CFM @ 0.000-In. SP 1260
• CFM @ 0.125-In. SP 1209
• CFM @ 0.250-In. SP 1156
• CFM @ 0.375-In. SP 1100
• CFM @ 0.500-In. SP 1041
• CFM @ 0.750-In. SP 918
• CFM @ 0.875-In. SP 846
• CFM @ 1.000-In. SP 759
• CFM @ 1.250-In. SP 639
• Sones @ 0.125-In. SP @ 5 Ft. 13.8
• Sones @ 0.250-In. SP @ 5 Ft. 13.4
• Assembled/Unassembled Unassembled
• Phase 1
• Motor HP Range 1/4
• Max. BHP 0.25
• RPM 1725
• Shaft Dia. Wheel End 3/4 in
• Bearing Type Sealed Pillow Block
• Housing Material Spun Aluminum
• Wheel Material Aluminum
• Speed Controllable No
• Fixed UL 762 Kitchen Roof Curb Stock No. 4HX54
• Recommended 12 In. Fixed Curb Item No. 2RB75
• Recommended 8 In. Fixed Curb Item No. 4HX38
• Recommended Damper Size (In.) 12 x 12
• Recommended Damper Stock No. 4HX64
• Adj. 12 3/8"H Roof Curb Stock No. 2ZV82
• Adj. UL 762 Kitchen Roof Curb Stock No. 4HX61
• Requires Roof Curb for New Installation
• Includes NEMA 1 Junction Box
• Standards UL 762 Listed Restaurant Exhaust Appliances (YZHW)
• Dimension A 19 in
• Dimension B 24-7/8 in
• Dimension C 25-1/8 in
• Dimension D 17-3/8 in

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 7DF67
• MPN: 7DF67

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: ZZ
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414519060
• GDS Category Name: Centrifugal Upblast Roof Exhaust Fans with Motor
• GDS Family Name: Roof Ventilators
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101502
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Ventilation
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Air exhausters
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
