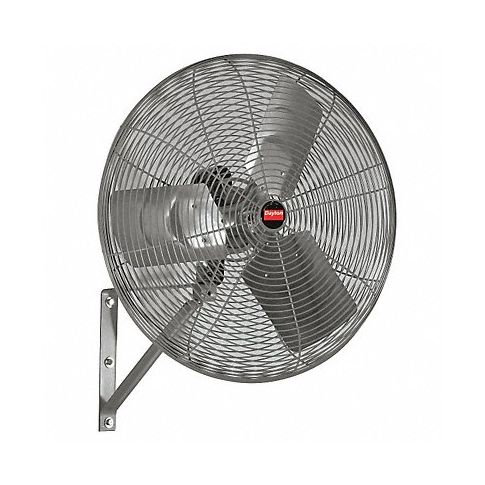

Stndrd Dty Indstrl Fan 30 Blde Dia 2Spd MPN:7DD06
Stay cool and reduce workplace heat with our Standard-Duty Industrial Fan! Designed for heavy-duty usage in industrial settings, these powerful fans are made of sturdy materials and have a high-horsepower motor to ensure longevity. With 30-inch blade diameter, this fan provides efficient air circulation and can cover large areas with ease. Perfect for cooling manufacturing spaces, warehouses, or any other dusty or dirty environment where floor space is limited, our standard duty industrial fans are equipped to handle any challenge. Ideal for use in aisles, tight spaces, and busy areas of shipping operations, these wall-mounted air circulators will provide you with the cooling relief you need while minimizing floor clutter. With their enclosed motors and protective guards, they are also designed to prevent damage from accidental contact and ensure safe operation. Say goodbye to sweltering work environments, invest in our Standard-Duty Industrial Fan today!
Top product features:
- Enclosed motor to prevent debris
- Robust motor bearings for longer life
- Wall-mounted design saves floor space
Top product applications:
- Cooling manufacturing areas and factories
- Ventilation in warehouses and shipping operations
- Personal cooling in dusty or dirty environments
Technical Specifications
- Item Standard-Duty Industrial Fan
- Blade Diameter 30 in
- Wheeled Base Stationary
- Oscillation Non-Oscillating
- Watts 350
- Number of Speeds 2
- Voltage 115V AC
- Phase 1
- Air Flow 8712/9704 cfm
- Motor HP 1/2
- RPM 1075
- Amps 3.70/3.12
- Fan Mounting Location Ceiling/Wall/Post
- Air Velocity @ 10 Ft. 1190/1110
- Air Velocity @ 20 Ft. 750/700
- Air Velocity @ 40 Ft. 310/290
- Air Velocity @ 60 Ft. 180/170
- Assembly Required No
- Sound Level 78dBA
- Max. Ambient Temp. 104 Degrees F
- Hz 60
- Motor Enclosure Totally Enclosed Air-Over
- Motor Insulation Class B
- Motor Type Permanent Split Capacitor
- Thermal Protection Auto
- Bearing Type Ball
- Fan Cord Length 10 ft
- Height 33 in
- Width 33 in
- Depth 14-1/4 in
- Number of Blades 3
- Blade Material Aluminum
- Shaft Dia. 1/2 in
- Fan Housing Material Steel
- Guard Material Steel
- Wire Guard Finish Gray Polyester Powder Coated
- Drive Type Direct
- Standards UL, cUL, OSHA
- Includes Mounting Bolts, Safety Support Cable, Assembly Hardware
- Environmental Applications Industrial
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 7DD06
- MPN: 7DD06
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414510090
- GDS Category Name: Industrial Fans
- GDS Family Name: Cooling Fans and Air Circulators
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101602
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Air circulators
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on August 15, 2025 11:50pm UTC Category: Cooling Fans and Air Circulators
