Stndrd Dty Indstrl Fan 24 Blde Dia 2Spd MPN:7DD03
SKU
226-CXO-7DD03

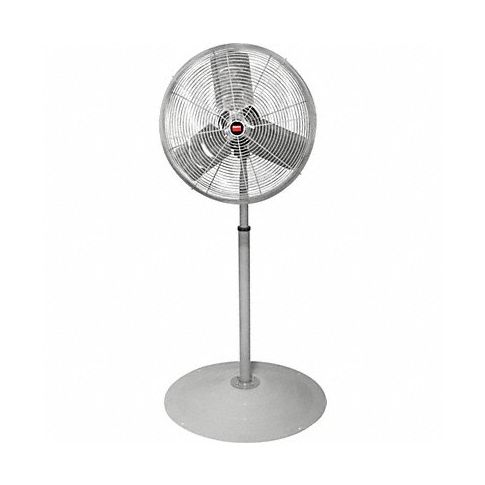

Stndrd Dty Indstrl Fan 24 Blde Dia. 2Spd
Stay cool and productive with our Standard-Duty Industrial Pedestal Fan, designed to tackle tough manufacturing environments where efficient cooling is a necessity. With a heavy-duty motor and robust bearings, this industrial fan guarantees reliable operation for years to come. Featuring a height-adjustable pedestal base, this versatile fan can be placed on the floor or raised as needed, directing cool air exactly where you need it most. The rugged construction is built to withstand daily use in harsh conditions and keeps your machinery, products, and employees comfortable during long hours of operation. Perfect for warehouses, manufacturing plants, shipping docks, or any space that requires a powerful air circulation solution, our Standard-Duty Industrial Pedestal Fan is the ideal cooling companion for your toughest industrial challenges.
Top product features:
- Totally enclosed motor to keep out debris
- Adjustable height post for directing cool air
- Rugged construction built to withstand daily use
Top product applications:
- Cooling heavy manufacturing areas or other dusty/dirty environments
- Providing air circulation in warehouses, shipping operations, and similar spaces
- Maintaining comfort for employees working on factory floors or in equipment enclosures
Standard-duty industrial pedestal fans cool heavy manufacturing areas and other dusty or dirty environments. Compared to light-duty industrial fans, these standard-duty fans are made of heavier-gauge materials, have a higher-horsepower motor that is totally enclosed to keep out debris, and feature more-robust motor bearings for a longer life.Industrial pedestal fans have a heavy base and an adjustable-height post, so they can be placed on the floor and directed onto workspaces, machinery, or products. The pedestal base provides stable footing while allowing fans to be moved as needed. The post can be raised or lowered to set the fan head at an optimal height. These air circulators (sometimes called industrial shop fans) are commonly used for cooling in manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
Technical Specifications
- Item Standard-Duty Industrial Fan
- Blade Diameter 24 in
- Wheeled Base Stationary
- Oscillation Oscillating
- Watts 429/353
- Number of Speeds 2
- Voltage 115V AC
- Phase 1
- Air Flow 4460/6400 cfm
- Motor HP 1/2
- RPM 1075/600
- Amps 4.65/3.31
- Fan Mounting Location Pedestal
- Air Velocity @ 10 Ft. 1020/710
- Air Velocity @ 20 Ft. 410/325
- Air Velocity @ 40 Ft. 185/145
- Air Velocity @ 60 Ft. 80/60
- Assembly Required No
- Sound Level 74dBA
- Max. Ambient Temp. 104 Degrees F
- Hz 60
- Motor Enclosure Totally Enclosed Air-Over
- Motor Insulation Class B
- Motor Type Permanent Split Capacitor
- Thermal Protection Auto
- Bearing Type Ball
- Fan Cord Length 10 ft
- Height 27 in
- Width 27 in
- Depth 16-3/4 in
- Number of Blades 3
- Blade Material Aluminum
- Shaft Dia. 1/2 in
- Fan Housing Material Steel
- Guard Material Steel
- Wire Guard Finish Gray Polyester Powder Coated
- Drive Type Direct
- Standards UL, cUL, OSHA
- Includes Mounting Bolts, Hex Key, Assembly Hardware
- Environmental Applications Industrial
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 7DD03
- MPN: 7DD03
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414596590
- GDS Category Name: Industrial Fans
- GDS Family Name: Cooling Fans and Air Circulators
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101602
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Air circulators
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B0CDV8JJ6Q, B002UBNQU8, B00CLUQ4IE
Product info last updated on September 22, 2024 10:20am UTC Category: Cooling Fans and Air Circulators
