Stndrd Dty Indstrl Fan 20 Blde Dia 2Spd MPN:7DC98
SKU
226-CXO-7DC98

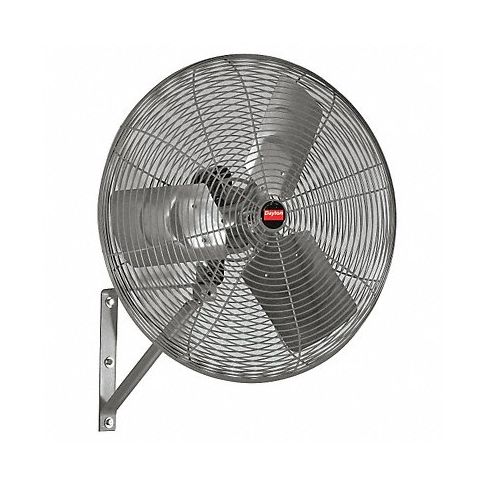

Stndrd Dty Indstrl Fan 20 Blde Dia. 2Spd
Stay cool in any environment with our Standard-Duty Industrial Fan! Perfect for heavy manufacturing areas, warehouses, or any place where floor space is limited, this fan features a sturdy construction that is built to last. With its high-powered motor and rugged design, it can move large volumes of air with ease, providing superior cooling power that will keep you comfortable in even the hottest environments. Plus, its wall-mounted design saves floor space and helps prevent accidents, making it a great choice for busy manufacturing plants or warehouses. Whether you need to cool down workers or machinery, this fan is the perfect solution! Get your Standard-Duty Industrial Fan today and stay cool in any industrial setting!
Top product features:
- Heavy-gauge materials suitable for daily use
- Powerful motor that drives fan blades to move large volumes of air
- High-performance bearings for a long life
Top product applications:
- Cooling heavy manufacturing areas or other dusty/dirty environments where floor space is limited
- Cooling people, machinery, and products in aisles, tight spaces, or busy areas of manufacturing plants, warehouses, or shipping operations
- Moving large volumes of air in industrial settings for heat exhaust or ventilation
Standard-duty industrial wall-mount fans cool heavy manufacturing areas and other dusty or dirty environments where floor space is limited. Compared to light-duty industrial fans, these standard-duty fans are made of heavier-gauge materials, have a higher-horsepower motor that is totally enclosed to keep out debris, and feature more-robust motor bearings for a longer life.Industrial wall-mount fans attach to a wall, ceiling, or beam so they won't take up floor space, block traffic flow, or create a tripping hazard. These air circulators are often used for cooling people, machinery, and products in aisles, tight spaces, and busy areas of manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
Technical Specifications
- Item Standard-Duty Industrial Fan
- Blade Diameter 20 in
- Wheeled Base Stationary
- Oscillation Non-Oscillating
- Watts 198
- Number of Speeds 2
- Voltage 115V AC
- Phase 1
- Air Flow 3055/4700 cfm
- Motor HP 1/4
- RPM 1075
- Amps 0.94/0.66
- Fan Mounting Location Ceiling/Wall/Post
- Air Velocity @ 10 Ft. 900/585
- Air Velocity @ 20 Ft. 580/375
- Air Velocity @ 40 Ft. 240/156
- Air Velocity @ 60 Ft. 155/100
- Assembly Required No
- Sound Level 76dBA
- Max. Ambient Temp. 104 Degrees F
- Hz 60
- Motor Enclosure Totally Enclosed Air-Over
- Motor Insulation Class B
- Motor Type Permanent Split Capacitor
- Thermal Protection Auto
- Bearing Type Ball
- Fan Cord Length 10 ft
- Height 23 in
- Width 23 in
- Depth 12-1/4 in
- Number of Blades 3
- Blade Material Aluminum
- Shaft Dia. 1/2 in
- Fan Housing Material Steel
- Guard Material Steel
- Wire Guard Finish Gray Polyester Powder Coated
- Drive Type Direct
- Standards UL, cUL, OSHA
- Includes Mounting Bolts, Safety Support Cable, Assembly Hardware
- Environmental Applications Industrial
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 7DC98
- MPN: 7DC98
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414599080
- GDS Category Name: Industrial Fans
- GDS Family Name: Cooling Fans and Air Circulators
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101602
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Air circulators
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on December 9, 2024 7:25pm UTC
Category: Cooling Fans and Air Circulators
